Low-Profile High-Current Power Inductors

(TPSPA) Shielded

Introduction (TPSPA)

SMD Power High Saturation - TPSPA series
SMD Power High Saturation (TPSPA)

Token Power Inductor Enhances Low-Profile High-Current With Up To 1MHz High Frequency.

Token's (TPSPA) inductor features high current and low direct current resistance (DCR) in a rugged surface-mount package. Available in six industry-standard footprint (4.2 mm x 4.4 mm), (5.2 mm x 5.4 mm), (6.6 mm x 7.15 mm), (10.1 mm x 11.15 mm), (12.6 mm x 13.65 mm), and (17.15 mm x 17.15 mm) with a profile from 1.2 mm to 7.0 mm maximum, the TPSPA series inductors use an advanced core material that operating temperature range from -25°C to +125°C, and are said to provide the lowest DCR of any inductor in this size and profile.

These high current inductors are suitable for use in voltage regulator module applications in desktop computers, notebook computers, point-of-load converters, workstations and servers as well as DC-DC applications, and other high-power, high-density, high-ambient temperature applications.

Token (TPSPA) series provides a high peak saturation current and a maximum operating current rating that enables the inductors to handle the high current requirements of microprocessors with significant saturation margin. The series also offers a saturation current range from 2.0A up to 75A, heat rating current from 1.0A to 43A, typical DCR from 0.5mΩ to 300.0mΩ, and maximum DCR from 0.65mΩ to 350mΩ, which results in lower copper losses and maximizes the current rating for higher component performance and system efficiency. The inductance values range from 0.1μH to 150μH.

The (TPSPA) inductors are RoHS compliant and meet standard EIA481 requirements. Custom parts are available on request. Token will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.

Download Complete Datasheet Low-Profile High-Current Power Inductors (TPSPA) PDF.

Features :

  1. Good magnetic shielding.
  2. Low Profile: 1.2mm ~ 7.0mm.
  3. High current (rated current): 1A ~ 42A.
  4. High frequency (up to 1MHz).

Applications :

  1. DC to DC converter.
  2. Power distribution system or VRM application.
  3. Thin board power supply switching module.
  4. Notebook computer, PC display card, VGA module.

Dimensions & Configurations (TPSPA)

(TPSPA) Dimensions
(TPSPA) Dimensions
Type A (mm) B (mm) C (mm) D (mm) E (mm)
TPSPA0420 4.2 ± 0.25 4.4 ± 0.35 2.0 max. 0.8 ± 0.3 1.5 ± 0.3
TPSPA0518 5.2 ± 0.25 5.4 ± 0.35 1.8 max. 1.0 ± 0.3 2.3 ± 0.3
TPSPA0530 5.2 ± 0.25 5.4 ± 0.35 3.0 max. 1.0 ± 0.3 2.3 ± 0.3
TPSPA0612 6.6 ± 0.25 7.15 ± 0.35 1.2 max. 1.5 ± 0.3 3.0 ± 0.3
TPSPA0615 6.6 ± 0.25 7.15 ± 0.35 1.5 max. 1.5 ± 0.3 3.0 ± 0.3
TPSPA0618 6.6 ± 0.25 7.15 ± 0.35 1.8 max. 1.5 ± 0.3 3.0 ± 0.3
TPSPA0624 6.6 ± 0.25 7.15 ± 0.35 2.4 max. 1.5 ± 0.3 3.0 ± 0.3
TPSPA0630 6.6 ± 0.25 7.15 ± 0.35 3.0 max. 1.5 ± 0.3 3.0 ± 0.3
TPSPA0650 6.6 ± 0.25 7.15 ± 0.35 5.0 max. 1.5 ± 0.3 3.0 ± 0.3
TPSPA1030 10.1 ± 0.25 11.15 ± 0.35 3.0 max. 2.0 ± 0.5 3.0 ± 0.5
TPSPA1040 10.1 ± 0.25 11.15 ± 0.35 4.0 max. 2.0 ± 0.5 3.0 ± 0.5
TPSPA1050 10.1 ± 0.25 11.15 ± 0.35 5.0 max. 2.0 ± 0.5 3.0 ± 0.5
TPSPA1335 12.6 ± 0.2 13.65 ± 0.35 3.5 max. 2.5 ± 0.5 3.8 ± 0.5
TPSPA1350 12.6 ± 0.2 13.65 ± 0.35 5.0 max. 2.5 ± 0.5 3.8 ± 0.5
TPSPA1360 12.6 ± 0.2 13.65 ± 0.35 6.0 max. 2.5 ± 0.5 3.8 ± 0.5
TPSPA1365 12.6 ± 0.2 13.65 ± 0.35 6.5 max. 2.5 ± 0.5 3.8 ± 0.5
TPSPA1770 17.15 max. 17.15 ± 0.35 7.0 max. 2.5 ± 0.5 12.0 ± 0.5

Electrical Characteristics (TPSPA0420)

Part Number L0 Inductance (µH)
@ (0A) ±20%
DCR (mΩ) @25°C Heat Rating Current
Idc (A) Typical
Saturation Current
Isat (A) Typical
(Typical) (Max)
TPSPA0420-R10M 0.10 3.5 4.0 13.0 27.0
TPSPA0420-R22M 0.22 6.0 6.6 9.5 21.0
TPSPA0420-R47M 0.47 12.5 14.0 7.0 9.5
TPSPA0420-R56M 0.56 14.0 16.0 6.0 8.5
TPSPA0420-R68M 0.68 19.6 21.0 5.2 8.0
TPSPA0420-1R0M 1.00 24.0 27.0 4.5 7.0
TPSPA0420-1R5M 1.50 35.0 42.0 4.0 6.0
TPSPA0420-2R2M 2.20 52.0 58.0 3.0 5.0
TPSPA0420-3R3M 3.30 74.0 87.0 2.5 4.0
TPSPA0420-4R7M 4.70 92.0 104.0 2.2 3.0
TPSPA0420-6R8M 6.80 160.0 175.0 2.0 2.5
TPSPA0420-100M 10.00 230.0 265.0 1.6 2.2
Note:
  • Test frequency at 100KHZ / 1.0V.
  • Idc (Irms):Current that causes a 40°C temperature rise from 25°C ambient.
  • Isat:DC current at which the inductance drops 30% from its value without current.

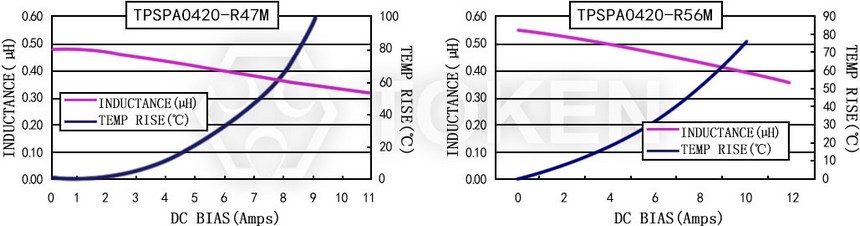

Current characteristics TPSPA0420-∗∗∗M Series

Current characteristics TPSPA0420-XXXM Series Current characteristics TPSPA0420-XXXM Series Current characteristics TPSPA0420-XXXM Series Current characteristics TPSPA0420-XXXM Series Current characteristics TPSPA0420-XXXM Series Current characteristics TPSPA0420-XXXM Series
Current characteristics TPSPA0420-∗∗∗M Series

Electrical Characteristics (TPSPA0518)

Part Number L0 Inductance (µH)
@ (0A) ±20%
DCR (mΩ) @25°C Heat Rating Current
Idc (A) Typical
Saturation Current
Isat (A) Typical
(Typical) (Max)
TPSPA0518-R33M 0.33 5.7 6.8 15.0 17.0
TPSPA0518-R47M 0.47 7.7 9.0 10.5 15.5
TPSPA0518-R56M 0.56 8.0 10.0 9.5 15.0
TPSPA0518-R68M 0.68 11.5 13.0 8.0 14.0
TPSPA0518-R82M 0.82 13.0 15.0 8.0 10.0
TPSPA0518-1R0M 1.00 15.0 17.0 8.0 9.0
TPSPA0518-1R2M 1.20 17.0 20.0 7.5 8.0
TPSPA0518-1R5M 1.50 26.0 30.0 6.0 7.0
TPSPA0518-2R2M 2.20 30.0 35.0 5.0 6.5
TPSPA0518-3R3M 3.30 52.0 58.0 4.5 5.0
TPSPA0518-4R7M 4.70 78.0 85.0 3.5 4.0
TPSPA0518-5R6M 5.60 85.0 95.0 3.0 3.5
TPSPA0518-6R8M 6.80 107.0 120.0 2.8 3.4
TPSPA0518-8R2M 8.20 131.0 145.0 2.6 3.1
TPSPA0518-100M 10.00 140.0 155.0 2.5 3.0
Note:
  • Test frequency at 100KHZ / 1.0V.
  • Idc (Irms):Current that causes a 40°C temperature rise from 25°C ambient.
  • Isat:DC current at which the inductance drops 30% from its value without current.

Current characteristics TPSPA0518-∗∗∗M Series

Current characteristics TPSPA0518-XXXM Series Current characteristics TPSPA0518-XXXM Series Current characteristics TPSPA0518-XXXM Series Current characteristics TPSPA0518-XXXM Series Current characteristics TPSPA0518-XXXM Series Current characteristics TPSPA0518-XXXM Series Current characteristics TPSPA0518-XXXM Series Current characteristics TPSPA0518-XXXM Series
Current characteristics TPSPA0518-∗∗∗M Series

Electrical Characteristics (TPSPA0530)

Part Number L0 Inductance (µH)
@ (0A) ±20%
DCR (mΩ) @25°C Heat Rating Current
Idc (A) Typical
Saturation Current
Isat (A) Typical
(Typical) (Max)
TPSPA0530-R47M 0.47 6.4 7.4 12.0 16.0
TPSPA0530-R68M 0.68 11.0 12.0 8.5 14.0
TPSPA0530-R75M 0.75 12.0 13.0 8.0 12.0
TPSPA0530-1R0M 1.00 13.0 14.0 7.0 9.0
TPSPA0530-1R2M 1.20 15.0 16.0 6.5 8.5
TPSPA0530-1R5M 1.50 20.0 25.0 6.0 8.2
TPSPA0530-2R2M 2.20 29.0 35.0 5.5 7.5
TPSPA0530-3R3M 3.30 32.0 38.0 5.0 5.0
TPSPA0530-4R7M 4.70 50.0 60.0 4.0 4.2
TPSPA0530-5R6M 5.60 55.0 63.0 4.0 4.0
TPSPA0530-6R8M 6.80 68.0 76.0 4.0 3.5
TPSPA0530-8R2M 8.20 80.0 105.0 3.3 3.0
TPSPA0530-100M 10.00 110.0 128.0 2.8 2.7
Note:
  • Test frequency at 100KHZ / 1.0V.
  • Idc (Irms):Current that causes a 40°C temperature rise from 25°C ambient.
  • Isat:DC current at which the inductance drops 30% from its value without current.

Current characteristics TPSPA0530-∗∗∗M Series

Current characteristics TPSPA0530-XXXM Series Current characteristics TPSPA0530-XXXM Series Current characteristics TPSPA0530-XXXM Series Current characteristics TPSPA0530-XXXM Series Current characteristics TPSPA0530-XXXM Series Current characteristics TPSPA0530-XXXM Series Current characteristics TPSPA0530-XXXM Series
Current characteristics TPSPA0530-∗∗∗M Series

Electrical Characteristics (TPSPA0612)

Part Number L0 Inductance (µH)
@ (0A) ±20%
DCR (mΩ) @25°C Heat Rating Current
Idc (A) Typical
Saturation Current
Isat (A) Typical
(Typical) (Max)
TPSPA0612-R56M 0.56 13.5 15.5 7.0 11.0
TPSPA0612-R68M 0.68 15.0 17.5 6.7 9.0
TPSPA0612-R82M 0.82 21.5 24.5 6.3 8.0
TPSPA0612-1R0M 1.00 25.0 29.0 6.0 7.0
TPSPA0612-2R2M 2.20 51.5 59.0 4.0 5.0
TPSPA0612-3R3M 3.30 80.0 92.0 3.0 4.0
TPSPA0612-4R7M 4.70 106.0 122.0 2.7 3.5
TPSPA0612-6R8M 6.80 185.0 210.0 2.2 2.8
TPSPA0612-100M 10.00 250.0 290.0 2.0 2.2
Note:
  • Test frequency at 100KHZ / 1.0V.
  • Idc (Irms):Current that causes a 40°C temperature rise from 25°C ambient.
  • Isat:DC current at which the inductance drops 30% from its value without current.

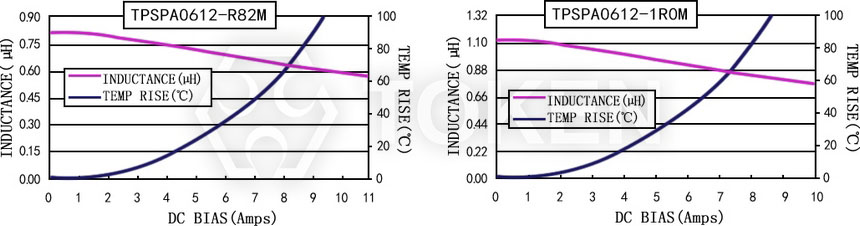

Current characteristics TPSPA0612-∗∗∗M Series

Current characteristics TPSPA0612-XXXM Series Current characteristics TPSPA0612-XXXM Series Current characteristics TPSPA0612-XXXM Series Current characteristics TPSPA0612-XXXM Series Current characteristics TPSPA0612-XXXM Series
Current characteristics TPSPA0612-∗∗∗M Series

Electrical Characteristics (TPSPA0615)

Part Number L0 Inductance (µH)
@ (0A) ±20%
DCR (mΩ) @25°C Heat Rating Current
Idc (A) Typical
Saturation Current
Isat (A) Typical
(Typical) (Max)
TPSPA0615-R56M 0.56 9.5 11.0 9.0 14.0
TPSPA0615-R68M 0.68 10.5 12.0 8.5 12.0
TPSPA0615-R82M 0.82 15.0 17.0 7.0 10.0
TPSPA0615-1R0M 1.00 18.5 21.0 5.5 9.0
TPSPA0615-1R2M 1.20 25.0 30.0 5.4 8.5
TPSPA0615-2R2M 2.20 46.0 54.0 3.5 6.0
TPSPA0615-3R3M 3.30 54.0 63.0 3.3 5.5
TPSPA0615-4R7M 4.70 76.0 85.0 3.2 5.0
TPSPA0615-6R8M 6.80 125.0 135.0 2.5 4.0
TPSPA0615-100M 10.00 165.0 175.0 2.0 3.0
Note:
  • Test frequency at 100KHZ / 1.0V.
  • Idc (Irms):Current that causes a 40°C temperature rise from 25°C ambient.
  • Isat:DC current at which the inductance drops 30% from its value without current.

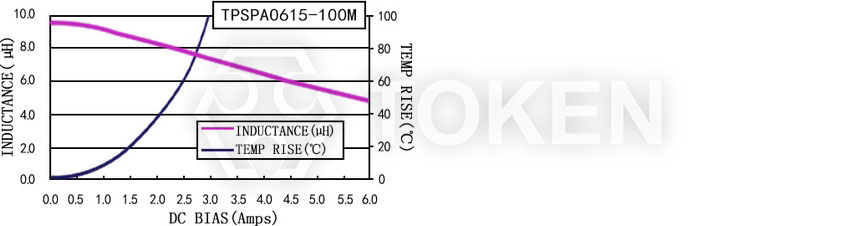

Current characteristics TPSPA0615-∗∗∗M Series

Current characteristics TPSPA0615-XXXM Series Current characteristics TPSPA0615-XXXM Series Current characteristics TPSPA0615-XXXM Series Current characteristics TPSPA0615-XXXM Series Current characteristics TPSPA0615-XXXM Series
Current characteristics TPSPA0615-∗∗∗M Series

Electrical Characteristics (TPSPA0618)

Part Number L0 Inductance (µH)
@ (0A) ±20%
DCR (mΩ) @25°C Heat Rating Current
Idc (A) Typical
Saturation Current
Isat (A) Typical
(Typical) (Max)
TPSPA0618-R10M 0.10 2.0 2.5 18.0 45.0
TPSPA0618-R22M 0.22 4.5 5.2 14.0 29.0
TPSPA0618-R33M 0.33 5.2 6.8 12.0 22.0
TPSPA0618-R47M 0.47 7.3 8.4 11.0 18.0
TPSPA0618-R56M 0.56 8.5 10.0 10.0 15.0
TPSPA0618-R68M 0.68 10.8 12.7 9.0 13.0
TPSPA0618-R82M 0.82 11.5 13.5 8.0 12.0
TPSPA0618-1R0M 1.00 14.5 17.0 7.0 11.0
TPSPA0618-1R5M 1.50 20.0 26.0 6.5 9.0
TPSPA0618-2R0M 2.00 28.0 32.0 6.0 9.0
TPSPA0618-2R2M 2.20 31.0 35.0 5.0 8.0
TPSPA0618-3R3M 3.30 45.0 50.0 3.5 7.5
TPSPA0618-4R7M 4.70 62.0 65.0 3.5 5.0
TPSPA0618-5R6M 5.60 68.0 75.0 3.0 4.0
TPSPA0618-6R8M 6.80 101.0 110.0 2.8 3.5
TPSPA0618-8R2M 8.20 120.0 135.0 2.5 3.0
TPSPA0618-100M 10.00 140.0 155.0 2.3 2.5
TPSPA0618-150M 15.00 215.0 250.0 1.8 2.2
Note:
  • Test frequency at 100KHZ / 1.0V.
  • Idc (Irms):Current that causes a 40°C temperature rise from 25°C ambient.
  • Isat:DC current at which the inductance drops 30% from its value without current.

Current characteristics TPSPA0618-∗∗∗M Series

Current characteristics TPSPA0618-XXXM Series Current characteristics TPSPA0618-XXXM Series Current characteristics TPSPA0618-XXXM Series Current characteristics TPSPA0618-XXXM Series Current characteristics TPSPA0618-XXXM Series Current characteristics TPSPA0618-XXXM Series Current characteristics TPSPA0618-XXXM Series Current characteristics TPSPA0618-XXXM Series Current characteristics TPSPA0618-XXXM Series
Current characteristics TPSPA0618-∗∗∗M Series

Electrical Characteristics (TPSPA0624)

Part Number L0 Inductance (µH)
@ (0A) ±20%
DCR (mΩ) @25°C Heat Rating Current
Idc (A) Typical
Saturation Current
Isat (A) Typical
(Typical) (Max)
TPSPA0624-R10M 0.10 1.5 1.7 30.0 70.0
TPSPA0624-R20M 0.20 2.2 2.8 25.0 50.0
TPSPA0624-R22M 0.22 2.6 3.2 21.0 34.0
TPSPA0624-R33M 0.33 3.5 4.1 15.0 24.0
TPSPA0624-R47M 0.47 4.5 5.1 13.0 21.0
TPSPA0624-R56M 0.56 5.9 6.5 12.0 17.0
TPSPA0624-R82M 0.82 8.3 9.5 10.0 14.0
TPSPA0624-1R0M 1.00 11.2 13.5 9.0 13.0
TPSPA0624-1R5M 1.50 17.0 20.0 8.0 11.0
TPSPA0624-2R2M 2.20 23.0 28.0 6.0 9.0
TPSPA0624-3R3M 3.30 31.0 39.0 5.0 7.0
TPSPA0624-4R7M 4.70 41.0 50.0 4.0 6.0
TPSPA0624-5R6M 5.60 51.0 60.0 4.0 6.0
TPSPA0624-6R8M 6.80 57.0 70.0 4.0 5.0
TPSPA0624-8R2M 8.20 78.0 86.0 3.5 5.0
TPSPA0624-100M 10.00 92.0 101.0 3.1 4.0
TPSPA0624-150M 15.00 145.0 160.0 2.5 3.3
Note:
  • Test frequency at 100KHZ / 1.0V.
  • Idc (Irms):Current that causes a 40°C temperature rise from 25°C ambient.
  • Isat:DC current at which the inductance drops 30% from its value without current.

Current characteristics TPSPA0624-∗∗∗M Series

Current characteristics TPSPA0624-XXXM Series Current characteristics TPSPA0624-XXXM Series Current characteristics TPSPA0624-XXXM Series Current characteristics TPSPA0624-XXXM Series Current characteristics TPSPA0624-XXXM Series Current characteristics TPSPA0624-XXXM Series Current characteristics TPSPA0624-XXXM Series Current characteristics TPSPA0624-XXXM Series Current characteristics TPSPA0624-XXXM Series
Current characteristics TPSPA0624-∗∗∗M Series

Electrical Characteristics (TPSPA0630)

Part Number L0 Inductance (µH)
@ (0A) ±20%
DCR (mΩ) @25°C Heat Rating Current
Idc (A) Typical
Saturation Current
Isat (A) Typical
(Typical) (Max)
TPSPA0630-R10M 0.10 1.5 1.7 32.5 60.0
TPSPA0630-R15M 0.15 1.9 2.5 30.0 40.0
TPSPA0630-R20M 0.20 2.4 3.0 21.0 34.0
TPSPA0630-R22M 0.22 2.5 3.0 21.0 34.0
TPSPA0630-R33M 0.33 3.0 3.5 21.0 22.0
TPSPA0630-R36M 0.36 3.3 3.9 16.0 20.0
TPSPA0630-R47M 0.47 3.5 4.1 15.5 19.0
TPSPA0630-R56M 0.56 4.25 4.9 15.0 18.0
TPSPA0630-R68M 0.68 5.0 5.7 14.0 17.0
TPSPA0630-R82M 0.82 6.0 6.9 12.0 16.0
TPSPA0630-1R0M 1.00 7.0 7.5 12.0 15.0
TPSPA0630-1R2M 1.20 8.0 10.5 9.0 12.0
TPSPA0630-1R5M 1.50 10.6 12.1 9.0 14.0
TPSPA0630-1R8M 1.80 14.0 16.0 7.5 13.0
TPSPA0630-2R2M 2.20 15.5 17.5 7.0 10.0
TPSPA0630-2R5M 2.50 16.0 18.0 7.0 10.0
TPSPA0630-3R3M 3.30 23.0 26.0 6.5 9.5
TPSPA0630-4R7M 4.70 34.5 38.0 5.0 6.5
TPSPA0630-5R6M 5.60 36.0 42.0 5.0 6.25
TPSPA0630-6R8M 6.80 50.0 54.0 4.5 6.0
TPSPA0630-8R2M 8.20 58.5 65.0 4.0 6.0
TPSPA0630-100M 10.00 71.0 76.0 4.0 4.5
TPSPA0630-120M 12.00 85.0 98.0 3.0 4.2
TPSPA0630-150M 15.00 98.0 115.0 3.0 3.8
TPSPA0630-220M 22.00 165.0 189.0 1.5 3.1
TPSPA0630-330M 33.00 225.0 257.0 1.0 2.9
Note:
  • Test frequency at 100KHZ / 1.0V.
  • Idc (Irms):Current that causes a 40°C temperature rise from 25°C ambient.
  • Isat:DC current at which the inductance drops 30% from its value without current.

Current characteristics TPSPA0630-∗∗∗M Series

Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series Current characteristics TPSPA0630-XXXM Series
Current characteristics TPSPA0630-∗∗∗M Series

Electrical Characteristics (TPSPA0650)

Part Number L0 Inductance (µH)
@ (0A) ±20%
DCR (mΩ) @25°C Heat Rating Current
Idc (A) Typical
Saturation Current
Isat (A) Typical
(Typical) (Max)
TPSPA0650-R13M 0.13 1.0 1.2 42.0 48.0
TPSPA0650-R22M 0.22 1.1 1.3 30.0 35.0
TPSPA0650-R36M 0.36 2.7 3.1 21.0 25.0
TPSPA0650-R40M 0.40 3.2 3.5 20.0 23.0
TPSPA0650-R47M 0.47 3.3 3.8 20.0 21.0
TPSPA0650-R56M 0.56 3.4 3.6 20.0 18.0
TPSPA0650-R68M 0.68 3.9 4.2 18.0 16.0
TPSPA0650-R82M 0.82 4.6 4.9 16.5 15.0
TPSPA0650-1R0M 1.00 5.6 6.5 12.0 13.0
TPSPA0650-1R2M 1.20 6.0 7.5 11.0 11.0
TPSPA0650-1R5M 1.50 7.0 8.5 10.0 10.0
TPSPA0650-2R2M 2.20 11.2 12.5 9.5 10.0
TPSPA0650-3R3M 3.30 19.9 20.9 8.5 9.0
TPSPA0650-4R7M 4.70 26.0 29.0 6.0 8.0
TPSPA0650-5R6M 5.60 31.5 34.4 6.0 7.0
TPSPA0650-6R8M 6.80 35.0 40.0 5.5 7.0
TPSPA0650-8R2M 8.20 40.0 43.0 5.5 6.5
TPSPA0650-100M 10.00 48.0 55.0 4.5 6.0
TPSPA0650-120M 12.00 58.0 65.0 4.0 5.0
TPSPA0650-150M 15.00 78.0 85.0 3.1 4.0
TPSPA0650-180M 18.00 83.0 105.0 3.0 3.5
TPSPA0650-220M 22.00 110.0 130.0 2.6 3.5
TPSPA0650-330M 33.00 160.0 200.0 2.3 3.0
TPSPA0650-470M 47.00 250.0 290.0 2.0 2.8
Note:
  • Test frequency at 100KHZ / 1.0V.
  • Idc (Irms):Current that causes a 40°C temperature rise from 25°C ambient.
  • Isat:DC current at which the inductance drops 30% from its value without current.

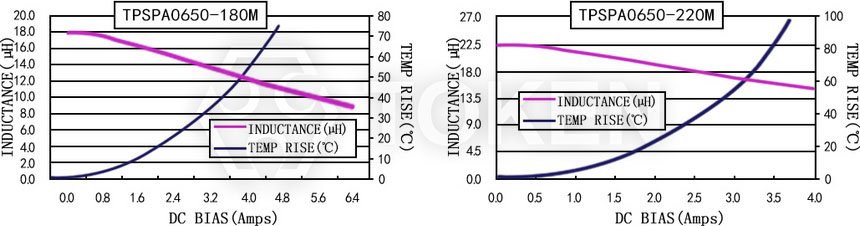

Current characteristics TPSPA0650-∗∗∗M Series

Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series Current characteristics TPSPA0650-XXXM Series
Current characteristics TPSPA0650-∗∗∗M Series

Order Codes (TPSPA)

TPSPA 0420 - R10 M
12 34
Part Number
TPSPA
Size (L×M)(mm)
0420 4.2×4.4
0518 5.2×5.4
0530 5.2×5.4
0612 6.6×7.15
0615 6.6×7.15
0618 6.6×7.15
0624 6.6×7.15
0630 6.6×7.15
0650 6.6×7.15
1030 10.1×11.15
1040 10.1×11.15
1050 10.1×11.15
1335 12.6×13.65
1350 12.6×13.65
1360 12.6×13.65
1365 12.6×13.65
1770 17.15×17.15

Inductance
R10 0.10µH
1R0 1.00µH
100 10.00µH
101 100.00µH
Tolerance
J ± 5%
K ± 10%
L ± 15%
M ± 20%
P ± 25%
N ± 30%
