Token SMD Power Inductor SMT Unshielded - TC5022DHP Series are primarily designed for power choking lines and conform to the RoHS directive and Lead-free. SMT power inductors can be customed designs and tighter tolerances available on request. Application of SMT power inductors specific designs also available including different inductance and frequency specifications adjusted to requirements.
  • Featurespower inductor
    － Open Magnetic circuit construction
    － Compact and thin
    － 8mm high for large current and low DCR.
    － Rugged self-leaded construction.
  • Applications
    － Notebook, Low voltage DC-DC converter

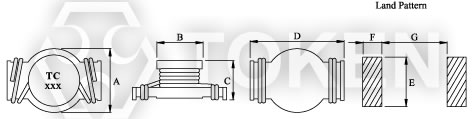

Dimensions & Configurations (Unit: mm)
Type A(max) B ± 0.3 C(max) D(max) E F G
TC5022DHP 16.26 12.70 8.00 22.35 8.64 3.18 14.35
Note: Design as Customer's Requested Specifications.
power inductor

Electrical Characteristics for TC5022DHP Series
Part Number Inductance(µH) Test Freq.(KHz) DCR (Ω)(max) IDC (A)(max)
TC5022DHP - R78N 0.78 100 0.0026 30.00
TC5022DHP - 1R5M 1.50 100 0.0040 25.00
TC5022DHP - 2R2M 2.20 100 0.0061 20.00
TC5022DHP - 3R3M 3.30 100 0.0086 17.00
TC5022DHP - 3R9M 3.90 100 0.010 15.00
TC5022DHP - 4R7M 4.70 100 0.014 13.00
TC5022DHP - 6R0M 6.00 100 0.017 12.00
TC5022DHP - 7R8M 7.80 100 0.018 11.00
TC5022DHP - 100M 10.00 100 0.026 10.00
TC5022DHP - 150M 15.00 100 0.032 8.00
Note: Test Freq.: 100KHz / 0.1V
Operating Temp.: -40°C ~ +85°C.
Inductance drop=10% typ. at IDC.

How to Order
TC5022DHP - R78 N

Type
SMT Unshielded Power Inductors:
(TC5022DHP)

Inductance
R78 (0.78µH)
1R5 (1.50µH)
100 (10.00µH)
Tolerance
K (10%)
L (15%)
M (20%)
N (30%)
