Introduction (TPSLF12555/12565/12575)
Token offers wirewound power inductor 0.0050Ω low DCR value. Token has once again extended its (TPSLF) family of low-profile, wire wound, high-current inductors with a new device that offers the lowest direct current resistance (DCR) available in a compact (6.2mm x 6.2mm), (7.4mm x 7.4mm), (10.1mm x 10.1mm), (12.5mm x 12.5mm) package with a low 3.0mm, 3.5mm, 4.5mm, 5.1mm, 5.5mm, 6.5mm, and 7.5mm height profile.
Token (TPSLF) SMD shielded inductors feature RoHS-compliant and a 100 percent Pb-free, magnetically shielded, composite construction that reduces buzz noise to ultra-low levels.
The (TPSLF) series is a high-performance, space-saving and power-saving solution for DC-DC converter applications for products such as Game machine, HDD, Notebook PC, Projector, PDA, mobile devices, notebook computers, desktop computers, and servers. Other applications include low-profile, and high-current power supplies.
Download Complete Specification SMD Shielded Large Current Inductors (TPSLF12555/12565/12575) PDF (422KB).
Selection Guide for Chip Inductors :
- TPSLF12555: Inductance 6.00μH ~ 1500.00μH; DCR 0.0164Ω ~ 1.730Ω; IDC 3.60A ~ 0.29A.
- TPSLF12565: Inductance 2.00μH ~ 220.00μH; DCR 0.0117Ω ~ 0.273Ω; IDC 10.00A ~ 1.00A.
- TPSLF12575: Inductance 1.20μH ~ 220.00μH; DCR 0.0050Ω ~ 0.258Ω; IDC 13.00A ~ 1.30A.
Features :
- Magnetically shielded construction.
- Large Current and Low DCR.
- Compact and thin.
Applications :
- Computers, DC-DC converter, VCR Camera.

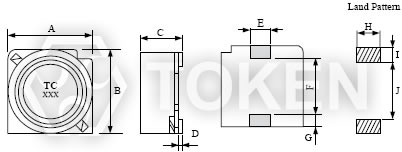

Dimensions & Configurations (Unit: mm) (TPSLF12555, TPSLF12565, TPSLF12575)
|
|||||||||||
| Type | A±0.3 | B±0.3 | C±0.3 | D(Ref) | E(Ref) | F(Ref) | G(Ref) | H | I | J | |
| TPSLF12555 | 12.5 | 12.5 | 5.5 | 0.1 | 3.0 | 8.3 | 2.0 | 3.2 | 2.5 | 8.6 | |
| TPSLF12565 | 12.5 | 12.5 | 6.5 | 0.1 | 3.0 | 8.3 | 2.0 | 3.2 | 2.5 | 8.6 | |
| TPSLF12575 | 12.5 | 12.5 | 7.5 | 0.1 | 3.0 | 8.3 | 2.0 | 3.2 | 2.5 | 8.6 | |
SMD Shielded Large Current (TPSLF12555/12565/12575) DimensionsNote: Design as Customer's Requested Specifications.
Electrical Characteristics (TPSLF12555)
| Part Number | Inductance (µH) | Test Freq. (KHz) | DCR (Ω) (±20%) | IDC (A)(max) |
| TPSLF12555 - 6R0N | 6.00 | 1 | 0.0164 | 3.60 |
| TPSLF12555 - 100M | 10.00 | 1 | 0.0215 | 3.40 |
| TPSLF12555 - 150M | 15.00 | 1 | 0.0259 | 2.80 |
| TPSLF12555 - 220M | 22.00 | 1 | 0.0338 | 2.30 |
| TPSLF12555 - 330M | 33.00 | 1 | 0.0415 | 1.90 |
| TPSLF12555 - 470M | 47.00 | 1 | 0.0618 | 1.60 |
| TPSLF12555 - 680M | 68.00 | 1 | 0.0832 | 1.30 |
| TPSLF12555 - 101M | 100.00 | 1 | 0.117 | 1.10 |
| TPSLF12555 - 151M | 150.00 | 1 | 0.190 | 0.88 |
| TPSLF12555 - 221M | 220.00 | 1 | 0.270 | 0.72 |
| TPSLF12555 - 331M | 330.00 | 1 | 0.410 | 0.59 |
| TPSLF12555 - 471M | 470.00 | 1 | 0.520 | 0.49 |
| TPSLF12555 - 681M | 680.00 | 1 | 0.760 | 0.43 |
| TPSLF12555 - 102M | 1000.00 | 1 | 1.120 | 0.34 |
| TPSLF12555 - 152M | 1500.00 | 1 | 1.730 | 0.29 |
Note: Test Freq.: 1KHz / 0.25V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=10% typ. at IDC.
Electrical Characteristics (TPSLF12565)
| Part Number | Inductance (µH) | Test Freq. (KHz) | DCR (Ω) (±20%) | IDC (A) (max) |
| TPSLF12565 - 2R0N | 2.00 | 1 | 0.0117 | 10.00 |
| TPSLF12565 - 4R2N | 4.20 | 1 | 0.0150 | 7.30 |
| TPSLF12565 - 7R0N | 7.00 | 1 | 0.0177 | 5.70 |
| TPSLF12565 - 100M | 10.00 | 1 | 0.0202 | 5.00 |
| TPSLF12565 - 150M | 15.00 | 1 | 0.0237 | 4.20 |
| TPSLF12565 - 220M | 22.00 | 1 | 0.0316 | 3.50 |
| TPSLF12565 - 330M | 33.00 | 1 | 0.0406 | 2.80 |
| TPSLF12565 - 470M | 47.00 | 1 | 0.0578 | 2.40 |
| TPSLF12565 - 680M | 68.00 | 1 | 0.0787 | 2.00 |
| TPSLF12565 - 101M | 100.00 | 1 | 0.123 | 1.60 |
| TPSLF12565 - 221M | 220.00 | 1 | 0.273 | 1.00 |
Note: Test Freq.: 1KHz / 0.25V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=10% typ. at IDC.
Electrical Characteristics (TPSLF12575)
| Part Number | Inductance (µH) | Test Freq. (KHz) | DCR (Ω) (±20%) | IDC (A) (max) |
| TPSLF12575 - 1R2N | 1.20 | 1 | 0.0050 | 13.00 |
| TPSLF12575 - 2R7N | 2.70 | 1 | 0.0094 | 10.00 |
| TPSLF12575 - 3R9N | 3.90 | 1 | 0.0104 | 9.00 |
| TPSLF12575 - 5R6N | 5.60 | 1 | 0.0116 | 7.80 |
| TPSLF12575 - 6R8N | 6.80 | 1 | 0.0131 | 7.20 |
| TPSLF12575 - 100M | 10.00 | 1 | 0.0156 | 5.50 |
| TPSLF12575 - 150M | 15.00 | 1 | 0.0184 | 4.70 |
| TPSLF12575 - 220M | 22.00 | 1 | 0.0263 | 4.00 |
| TPSLF12575 - 330M | 33.00 | 1 | 0.0395 | 3.20 |
| TPSLF12575 - 470M | 47.00 | 1 | 0.0528 | 2.70 |
| TPSLF12575 - 680M | 68.00 | 1 | 0.0778 | 2.00 |
| TPSLF12575 - 101M | 100.00 | 1 | 0.125 | 1.90 |
| TPSLF12575 - 151M | 150.00 | 1 | 0.175 | 1.50 |
| TPSLF12575 - 221M | 220.00 | 1 | 0.258 | 1.30 |
Note: Test Freq.: 1KHz / 0.25V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=10% typ. at IDC.
Order Codes (TPSLF12555/12565/12575)
| TPSLF6028 | - | 100 | M | ||||||||||||||||||
| 1 | 2 | 3 | |||||||||||||||||||
|
|
|
|||||||||||||||||||
