RF Balun Transformers for Frequency Mixer (TCB5FL)

Introduction (TCB5FL)

< >
  • SMD Common Mode Choke Coils (TCB5FL)
  • Frequency Mixer RF Balun (TCB5FL)
  • RF Balun Transformers for Frequency Mixer (TCB5FL)

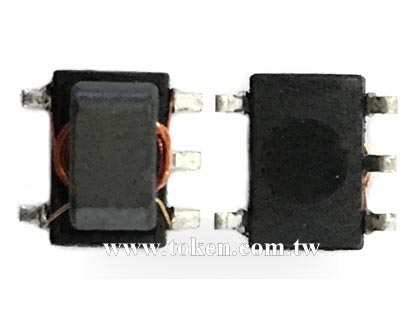

RF Balun transformer handles the work associated with interfacing differential RF circuits to single-ended ones.

A Balun is actually a device that typically transforms balanced impedance to unbalanced and the other. What is more, baluns have the ability to as well furnish impedance transformation, that's why the title Balun Transformers.

Token makes use of the most up-to-date turning technique utilizing coupled wiring for top consistency along with permitting one of the most cost-effective products when it comes to producing surface mount baluns.

Token (TCB5FL) baluns are primarily designed for choking power lines and conform to the RoHS compliant and Lead-free. SMD (TCB5FL) feature with ultra-compact size, wide inductance selection, and low-resistance coils. SMD (TCB5FL) can be customed designs and tighter tolerances available on request.

Application of RF balun transformer specific designs also available including different inductance values and Q specifications adjusted to frequency requirements. Base pins are end proccessed to allow direct mounting on PCB. Ideal for use in double balanced mixers, and as broad band transformers, transistors and for impedance conversion.

Token will also produce devices outside these specifications to meet customer requirements, with comprehensive application engineering and design support available for customers worldwide.

Download Complete Datasheet RF Balun Transformers for Frequency Mixer (TCB5FL) PDF.

Features :
  • Pair wire coil for higher stability and optimum balance.
  • Available in tape & reel for automatic surface mounting..
Applications :
  • Double Balance Mixers, Impedance Transformers, Frequency Mixer.
  • Balun Transformers, Broad-Band Transformers, Common Mode Filter.

Configurations & Dimensions (TCB5FL) Unit: mm

Common Mode Surface Mount Balun Transformers (TCB5FL) Dimensions
Common Mode Surface Mount Balun Transformers (TCB5FL) Dimensions
Type A
(max)
B
(max)
C
(max)
D E F G H I
TCB5FL 6.9 6.9 3.6 4.0 5-0.6 5.7 1.7 1.2 4.0

Note: Design as Customer's Requested Specifications.

Electrical Characteristics (TCB5FL)

Part Number Winding Turns
1-6=2-4=2-6=3-4
μiac
TCB5FL - 616DB1196 2 1/2 T 300
TCB5FL - 616DB1197 3 1/2 T 300
TCB5FL - 616DB1198 4 1/2 T 300

Test Circuit (TCB5FL)

SMD Balun Transformer (TCB5FL) Test Circuit
SMD Balun Transformer
(TCB5FL) Test Circuit

Typical Characteristics (TCB5FL)

SMD Balun Transformers (TCB5FL) Typical Characteristics
SMD Balun Transformers (TCB5FL) Typical Characteristics

Order Codes (TCB5FL)

TCB5F - 616DB1196

Part Number
TCB5FL

Type
616DB1196 Frequency Mixer
616DB1197 Frequency Mixer
