Token Chip Multilayer Inductors for High Frequency - MF Series are primarily designed for choking power lines and conform to the RoHS directive and Lead-free. Chip Multilayer Inductors Package of chip multilayer inductors is suitable for automatic pick and place equipment. Chip Multilayer Inductors can be customed designs and tighter tolerances available on request. Application of Chip Multilayer Inductors specific designs also available including different inductance values and Q specifications adjusted to frequency requirements.

Features
－High Q and high reliability and ceramic material.
－To prevent EMI interference noises between electronic circuits.
Applications
Notebook Computer, Disc Drive Unit(CD/DVD), Inkjet Printer, Hard Disk Drive, Copying Machine,
Display Monitor, Gaming Machine, Color TV, Video Tape Recorder, DVD Player, Video Camera,
Digital Still Camera, Car Electronics, Lowest EMI.

Multilayer Inductors - Configurations & Dimensions (unit: mm)

Type	A	B	C	D	E	F	G
TCMF100505 (0402)	1.0 ± 0.1	0.5 ± 0.1	0.5 ± 0.1	0.1(min)	0.5	0.45	0.5
TCMF160808 (0603)	1.6 ± 0.2	0.8 ± 0.2	0.8 ± 0.2	0.3 ± 0.2	0.7	0.70	0.7
TCMF201209 (0805)	2.0 ± 0.2	1.2 ± 0.2	0.9 ± 0.2	0.5 ± 0.3	1.0	0.80	1.0

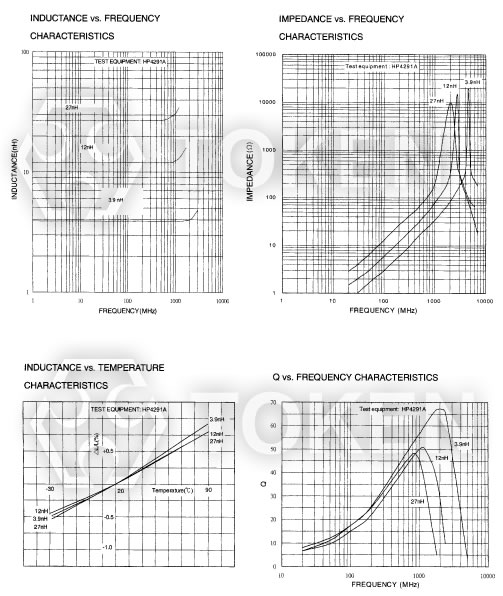

Electrical Characteristics for TCMF100505 (0402) Multilayer Inductors Series

Part Number	Inductance (L)(nH)	Freq. (MHz)	Tolerance	SRF (MHz)(min)	DCR (Ω)(max)	IDC (mA)(max)
TCMF100505 - 1N2*	1.20	100	S	12000	0.10	300
TCMF100505 - 1N5*	1.50	100	S	10500	0.10	300
TCMF100505 - 1N8*	1.80	100	S	9400	0.10	300
TCMF100505 - 2N2*	2.20	100	S	8700	0.20	300
TCMF100505 - 2N7*	2.70	100	S	7700	0.20	300
TCMF100505 - 3N3*	3.30	100	S, K	6800	0.30	300
TCMF100505 - 3N9*	3.90	100	S, K	6300	0.30	300
TCMF100505 - 4N7*	4.70	100	S, K	5700	0.40	300
TCMF100505 - 5N6*	5.60	100	S, K	5100	0.40	300
TCMF100505 - 6N8*	6.80	100	J, K	4550	0.50	300
TCMF100505 - 8N2*	8.20	100	J, K	4100	0.50	300
TCMF100505 - 10N*	10.00	100	J, K	3750	0.60	300
TCMF100505 - 12N*	12.00	100	J, K	2950	0.60	300
TCMF100505 - 15N*	15.00	100	J, K	2600	0.70	300
TCMF100505 - 18N*	18.00	100	J, K	2350	0.80	300
TCMF100505 - 22N*	22.00	100	J, K	1950	0.90	300
TCMF100505 - 27N*	27.00	100	J, K	1750	1.00	300
TCMF100505 - 33N*	33.00	100	J, K	1700	1.50	200
TCMF100505 - 39N*	39.00	100	J, K	1650	1.80	200
TCMF100505 - 47N*	47.00	100	J, K	1300	2.00	200

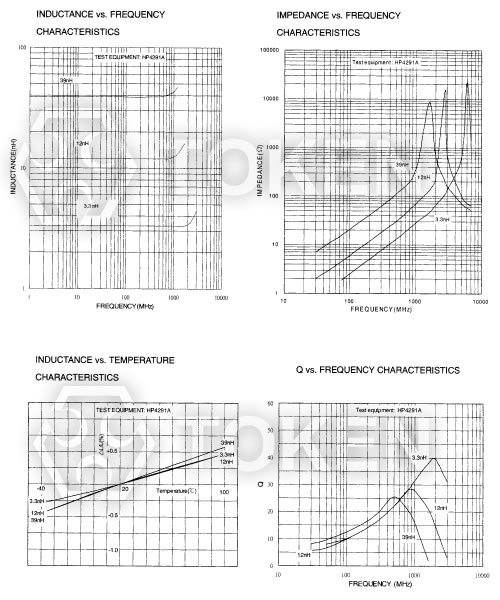

Electrical Characteristics for TCMF160808 (0603) Multilayer Inductors Series

Part Number	Inductance (L)(nH)	Freq. (MHz)	Tolerance	SRF (MHz)(min)	DCR (Ω)(max)	IDC (mA)(max)
TCMF160808 - 1N2*	1.20	100	S	>6000	0.12	300
TCMF160808 - 1N5*	1.50	100	S	>6000	0.12	300
TCMF160808 - 1N8*	1.80	100	S	>6000	0.12	300
TCMF160808 - 2N2*	2.20	100	S	>6000	0.16	300
TCMF160808 - 2N7*	2.70	100	S	>6000	0.20	300
TCMF160808 - 3N3*	3.30	100	S, K	5700	0.22	300
TCMF160808 - 3N9*	3.90	100	S, K	5600	0.25	300
TCMF160808 - 4N7*	4.70	100	S, K	4800	0.28	300
TCMF160808 - 5N6*	5.60	100	S, K	4350	0.29	300
TCMF160808 - 6N8*	6.80	100	J, K	3750	0.30	300
TCMF160808 - 8N2*	8.20	100	J, K	3300	0.33	300
TCMF160808 - 10N*	10.00	100	J, K	2850	0.35	300
TCMF160808 - 12N*	12.00	100	J, K	2700	0.40	300
TCMF160808 - 15N*	15.00	100	J, K	2400	0.45	300
TCMF160808 - 18N*	18.00	100	J, K	2050	0.50	300
TCMF160808 - 22N*	22.00	100	J, K	1850	0.55	300
TCMF160808 - 27N*	27.00	100	J, K	1750	0.60	300
TCMF160808 - 33N*	33.00	100	J, K	1500	0.65	300
TCMF160808 - 39N*	39.00	100	J, K	1350	0.70	300
TCMF160808 - 47N*	47.00	100	J, K	1200	0.90	300
TCMF160808 - 56N*	56.00	100	J, K	1100	1.00	300
TCMF160808 - 68N*	68.00	100	J, K	1000	1.50	300
TCMF160808 - 82N*	82.00	100	J, K	900	1.80	300
TCMF160808 - R10*	100.00	100	J, K	830	2.10	300

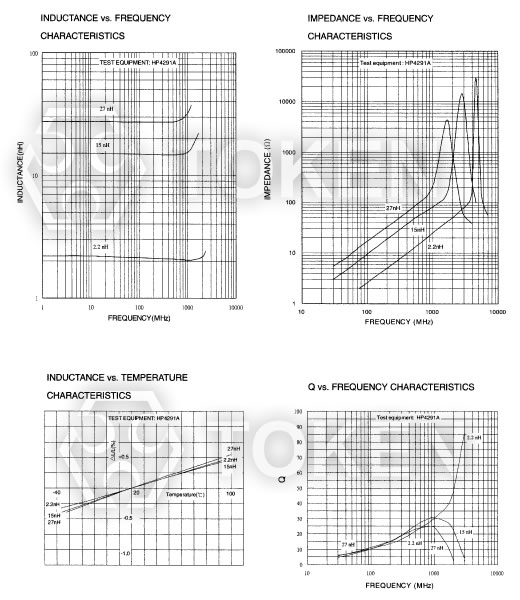

Electrical Characteristics for TCMF201209 (0805) Multilayer Inductors Series

Part Number	Inductance (L)(nH)	Freq. (MHz)	Tolerance	SRF (MHz)(min)	DCR (Ω)(max)	IDC (mA)(max)
TCMF201209 - 1N5*	1.50	100	S	>6000	0.10	300
TCMF201209 - 1N8*	1.80	100	S	>6000	0.10	300
TCMF201209 - 2N2*	2.20	100	S	>6000	0.10	300
TCMF201209 - 2N7*	2.70	100	S	>6000	0.10	300
TCMF201209 - 3N3*	3.30	100	S, K	>6000	0.13	300
TCMF201209 - 3N9*	3.90	100	S, K	5400	0.15	300
TCMF201209 - 4N7*	4.70	100	S, K	4500	0.20	300
TCMF201209 - 5N6*	5.60	100	S, K	4000	0.23	300
TCMF201209 - 6N8*	6.80	100	J, K	3650	0.25	300
TCMF201209 - 8N2*	8.20	100	J, K	3000	0.28	300
TCMF201209 - 10N*	10.00	100	J, K	2500	0.30	300
TCMF201209 - 12N*	12.00	100	J, K	2450	0.35	300
TCMF201209 - 15N*	15.00	100	J, K	2000	0.40	300
TCMF201209 - 18N*	18.00	100	J, K	1750	0.45	300
TCMF201209 - 22N*	22.00	100	J, K	1700	0.50	300
TCMF201209 - 27N*	27.00	100	J, K	1550	0.55	300
TCMF201209 - 33N*	33.00	100	J, K	1350	0.60	300
TCMF201209 - 39N*	39.00	100	J, K	1300	0.65	300
TCMF201209 - 47N*	47.00	100	J, K	1200	0.70	300
TCMF201209 - 56N*	56.00	100	J, K	1150	0.75	300
TCMF201209 - 68N*	68.00	100	J, K	1000	0.85	300
TCMF201209 - 82N*	82.00	100	J, K	850	0.90	300
TCMF201209 - R10*	100.00	100	J, K	730	1.00	300

How to Order

TCMF100505

1N2

Type

Multilayer Chip Inductors for High Frequency:
(TCMF100505, TCMF160808, TCMF201209)

Inductance

1N2 (1.2nH)
10N (10.0nH)
R10 (100.00nH)

Tolerance

S (0.3nH)
J (5%)
K (10%)
M (20%)
