Large Current Power Inductor
Through Hole (TCDA)Technology of Diagonal Through Hole Power Inductor Design (TCDA) Preview
Token's TCDA Large Current Series power inductors feature with high current, low DC resistance, high frequency, easy heat dissipation, and high reliability advantages.
Token utilizes the latest technology of diagonal through hole power inductor design enabling the most cost-effective propose in manufacturing TCDA Products.
Token will also produce devices outside these specifications to meet customer requirements, with comprehensive application engineering and design support available for customers worldwide.
The TCDA series is lead-free and RoHS compliant. Detailed specifications, both mechanical and electrical, please contact our sales representative for more information.
Features :
- Low DCR.
- High Frequency (up to 1MHz).
- Low Profile: 7.5mm ~ 10.0mm
- For Large Current Use: 12 ~ 45 amp.
- Diagonal Through Hole Power Inductor.
Applications :
- Graphic Card/ VGA Module.
- Inductor for general purpose use.
- Laptop Computer / Notebook Computer.
- DC/DC converter or VRM applications.
- Thin type on-board power supply module for exchanger.
Large Current (TCDA1312) Configurations & Dimensions
|
|||||||
| Type | A | B | C | D | E | F | |
| TCDA1312 | 12.0 ± 0.5 | 13.0 ± 0.5 | by each P/N | by each P/N | 3.5 ± 0.5 | 10.0 ± 0.5 | |

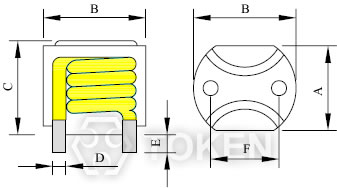

Large Current (TCDA1210) Configurations & Dimensions
|
|||||||
| Type | A | B | C | D | E | F | |
| TCDA1210 | 10.2 ± 0.5 | 12.3 ± 0.5 | by each P/N | by each P/N | 3.5 ± 0.5 | 8.0 ± 0.5 | |
Large Current (TCDA1109 & TCDA1090) Configurations & Dimensions
|
|||||||
| Type | A | B | C | D | E | F | |
| TCDA1109 | 11.0 ± 0.5 | 11.0 ± 0.5 | by each P/N | by each P/N | 3.5 ± 0.5 | 8.5 ± 0.5 | |
| TCDA1090 | 11.0 max | 11.0 max | by each P/N | by each P/N | 3.5 ± 0.5 | 7.5 ± 0.5 | |
Large Current (TCDA0707) Configurations & Dimensions
|
|||||||
| Type | A | B | C | D | E | F | |
| TCDA0707 | 7.4 ± 0.5 | 7.4 ± 0.5 | by each P/N | by each P/N | 3.5 ± 0.5 | 5.0 ± 0.5 | |
(TCDA1312) Electrical Characteristics
| Part Number | L0 Inductance (µH) ±20% @0A |
C (max) (mm) |
D ± 0.1 (mm) |
DCR (mΩ) | Heat Rating Current Idc (Amp) Typical |
Saturation Current Isat (Amp) Typical |
|
| (Typical) | (Max) | ||||||
| TCDA1312-R22M | 0.22 | 9 | 1.7 | 0.40 | 0.55 | 45 | 60 |
| TCDA1312-R30M | 0.30 | 9 | 1.7 | 0.55 | 0.70 | 40 | 60 |
| TCDA1312-R33M | 0.33 | 9 | 1.7 | 0.55 | 0.70 | 40 | 60 |
| TCDA1312-R39M | 0.39 | 9 | 1.7 | 0.55 | 0.70 | 40 | 60 |
| TCDA1312-R47M | 0.47 | 10 | 1.7 | 0.70 | 0.80 | 40 | 60 |
| TCDA1312-R50M | 0.50 | 10 | 1.7 | 0.70 | 0.80 | 40 | 60 |
| TCDA1312-R56M | 0.56 | 10 | 1.7 | 0.70 | 0.80 | 40 | 60 |
| TCDA1312-R60M | 0.60 | 10 | 1.7 | 0.70 | 0.80 | 40 | 60 |
| TCDA1312-R68M | 0.68 | 10 | 1.7 | 0.70 | 0.80 | 40 | 50 |
| TCDA1312-R80M | 0.8 | 10 | 1.7 | 0.70 | 0.85 | 40 | 50 |
| TCDA1312-1R0M | 1.0 | 10 | 1.5 | 1.20 | 1.35 | 30 | 50 |
| TCDA1312-1R2M | 1.2 | 10 | 1.5 | 1.20 | 1.50 | 30 | 40 |
| TCDA1312-1R5M | 1.5 | 10 | 1.4 | 1.50 | 1.70 | 30 | 40 |
| TCDA1312-2R0M | 2.0 | 10 | 1.2 | 2.90 | 3.30 | 17 | 25 |
| TCDA1312-2R2M | 2.2 | 10 | 1.2 | 2.90 | 3.30 | 17 | 25 |
Note:
All test Data is referenced to 25°C ambient.
Typical Heat Rating DC Current would cause an approximately ΔT of 40°C.
Typical Saturation DC Current would cause Lo to drop approximately 20%.
Operating Temperature Range: -25°C to +125°C.
(TCDA1210) Electrical Characteristics
| Part Number | L0 Inductance (µH) ±20% @0A |
C (max) (mm) |
D ± 0.1 (mm) |
DCR (mΩ) | Heat Rating Current Idc (Amp) Typical |
Saturation Current Isat (Amp) Typical |
|
| (Typical) | (Max) | ||||||
| TCDA1210-R22M | 0.22 | 7.5 | 1.4 | 0.5 | 0.6 | 38 | 56 |
| TCDA1210-R33M | 0.33 | 8.6 | 1.4 | 0.7 | 0.8 | 33 | 48 |
| TCDA1210-R39M | 0.39 | 8.6 | 1.4 | 0.7 | 0.8 | 33 | 45 |
| TCDA1210-R47M | 0.47 | 10 | 1.5 | 0.85 | 1.0 | 30 | 40 |
| TCDA1210-R56M | 0.56 | 10 | 1.5 | 0.85 | 1.0 | 30 | 40 |
| TCDA1210-R68M | 0.68 | 10 | 1.5 | 0.85 | 1.0 | 30 | 40 |
| TCDA1210-R80M | 0.8 | 10 | 1.4 | 1.25 | 1.45 | 26 | 36 |
| TCDA1210-1R0M | 1.0 | 10 | 1.2 | 1.75 | 2.0 | 24 | 32 |
| TCDA1210-1R2M | 1.0 | 10 | 1.2 | 1.75 | 2.0 | 24 | 30 |
| TCDA1210-1R5M | 1.5 | 10 | 1.0 | 3.0 | 3.5 | 22 | 30 |
| TCDA1210-2R2M | 2.2 | 10 | 1.0 | 3.8 | 4.6 | 20 | 25 |
| TCDA1210-2R8M | 2.8 | 10 | 1.0 | 4.5 | 5.0 | 18 | 20 |
| TCDA1210-3R3M | 3.3 | 10 | 0.8 | 6.4 | 7.2 | 14 | 16 |
| TCDA1210-4R7M | 4.7 | 10 | 0.8 | 8.3 | 9.8 | 12 | 15 |
Note:
All test Data is referenced to 25°C ambient.
Typical Heat Rating DC Current would cause an approximately ΔT of 40°C.
Typical Saturation DC Current would cause Lo to drop approximately 20%.
Operating Temperature Range: -25°C to +125°C.
(TCDA1109) Electrical Characteristics
| Part Number | L0 Inductance (µH) ±20% @0A |
C (max) (mm) |
D ± 0.1 (mm) |
DCR (mΩ) | Heat Rating Current Idc (Amp) Typical |
Saturation Current Isat (Amp) Typical |
|
| (Typical) | (Max) | ||||||
| TCDA1109-R25M | 0.25 (T1.5) | 8 | 1.4 | 0.50 | 0.60 | 50 | 60 |
| TCDA1109-R25M | 0.25 (T2.5) | 8 | 1.5 | 0.70 | 0.80 | 45 | 60 |
| TCDA1109-R30M | 0.30 | 8 | 1.5 | 0.70 | 0.80 | 45 | 60 |
| TCDA1109-R33M | 0.33 | 8 | 1.5 | 0.70 | 0.80 | 45 | 60 |
| TCDA1109-R36M | 0.36 | 8 | 1.5 | 0.70 | 0.80 | 45 | 60 |
| TCDA1109-R40M | 0.40 | 8 | 1.5 | 0.70 | 0.80 | 45 | 50 |
| TCDA1109-R47M | 0.47 | 9 | 1.5 | 0.80 | 1.00 | 40 | 50 |
| TCDA1109-R50M | 0.50 | 9 | 1.5 | 0.80 | 1.00 | 40 | 50 |
| TCDA1109-R56M | 0.56 | 9 | 1.5 | 0.80 | 1.00 | 40 | 50 |
| TCDA1109-R60M | 0.60 | 9 | 1.5 | 0.80 | 1.00 | 40 | 50 |
| TCDA1109-R68M | 0.68 | 9 | 1.4 | 1.00 | 1.20 | 35 | 40 |
| TCDA1109-R80M | 0.8 | 10 | 1.4 | 1.30 | 1.60 | 25 | 45 |
| TCDA1109-1R0M | 1.0 | 10 | 1.4 | 1.40 | 1.80 | 25 | 45 |
| TCDA1109-1R2M | 1.2 | 10 | 1.2 | 1.70 | 2.00 | 23 | 33 |
| TCDA1109-1R5M | 1.5 | 10 | 1.2 | 2.20 | 2.50 | 21 | 32 |
| TCDA1109-2R0M | 2.0 | 10 | 1.0 | 3.30 | 4.00 | 15 | 27 |
| TCDA1109-2R2M | 2.2 | 10 | 1.0 | 4.50 | 5.00 | 15 | 40 |
| TCDA1109-2R5M | 2.5 | 10 | 1.0 | 4.50 | 5.00 | 15 | 30 |
Note:
All test Data is referenced to 25°C ambient.
Typical Heat Rating DC Current would cause an approximately ΔT of 40°C.
Typical Saturation DC Current would cause Lo to drop approximately 20%.
Operating Temperature Range: -25°C to +125°C.
(TCDA1090) Electrical Characteristics
| Part Number | L0 Inductance (µH) ±20% @0A |
C (max) (mm) |
D ± 0.1 (mm) |
DCR (mΩ) | Heat Rating Current Idc (Amp) Typical |
Saturation Current Isat (Amp) Typical |
|
| (Typical) | (Max) | ||||||
| TCDA1090-R15M | 0.15 | 9 | 1.4 | 0.45 | 0.60 | 40 | 60 |
| TCDA1090-R20M | 0.20 | 9 | 1.4 | 0.45 | 0.60 | 40 | 60 |
| TCDA1090-R25M | 0.25 (1.5T) | 9 | 1.4 | 0.45 | 0.60 | 40 | 50 |
| TCDA1090-R25M | 0.25 (2.5T) | 10 | 1.4 | 0.65 | 0.75 | 40 | 60 |
| TCDA1090-R30M | 0.30 | 10 | 1.4 | 0.65 | 0.75 | 40 | 60 |
| TCDA1090-R33M | 0.33 | 10 | 1.4 | 0.65 | 0.75 | 40 | 60 |
| TCDA1090-R36M | 0.36 | 10 | 1.4 | 0.65 | 0.75 | 40 | 50 |
| TCDA1090-R39M | 0.39 | 10 | 1.4 | 0.65 | 0.75 | 40 | 50 |
| TCDA1090-R47M | 0.47 (2.5T) | 10 | 1.4 | 0.65 | 0.75 | 40 | 50 |
| TCDA1090-R47M | 0.47 (3.5T) | 10 | 1.4 | 0.90 | 1.10 | 35 | 50 |
| TCDA1090-R60M | 0.60 | 10 | 1.4 | 0.90 | 1.10 | 35 | 50 |
| TCDA1090-R68M | 0.68 | 10 | 1.4 | 0.90 | 1.10 | 35 | 40 |
| TCDA1090-R80M | 0.8 | 10 | 1.4 | 1.10 | 1.30 | 33 | 40 |
| TCDA1090-1R0M | 1.0 | 10 | 1.2 | 1.55 | 1.80 | 27 | 40 |
| TCDA1090-1R2M | 1.2 | 10 | 1.2 | 1.90 | 2.20 | 25 | 30 |
| TCDA1090-1R5M | 1.5 | 10 | 1.0 | 2.70 | 3.00 | 21 | 30 |
| TCDA1090-1R8M | 1.8 | 10 | 1.0 | 2.70 | 3.00 | 21 | 30 |
| TCDA1090-2R2M | 2.2 | 10 | 1.0 | 3.70 | 4.00 | 18 | 30 |
Note:
All test Data is referenced to 25°C ambient.
Typical Heat Rating DC Current would cause an approximately ΔT of 40°C.
Typical Saturation DC Current would cause Lo to drop approximately 20%.
Operating Temperature Range: -25°C to +125°C.
(TCDA0707) Electrical Characteristics
| Part Number | L0 Inductance (µH) ±20% @0A |
C (max) (mm) |
D ± 0.1 (mm) |
DCR (mΩ) | Heat Rating Current Idc (Amp) Typical |
Saturation Current Isat (Amp) Typical |
|
| (Typical) | (Max) | ||||||
| TCDA0707-R20M | 0.20 | 8 | 0.8 | 1.30 | 2.00 | 22 | 40 |
| TCDA0707-R30M | 0.30 | 8 | 0.8 | 1.80 | 2.60 | 20 | 36 |
| TCDA0707-R36M | 0.36 | 8 | 0.8 | 1.80 | 2.60 | 20 | 34 |
| TCDA0707-R39M | 0.39 | 8 | 0.8 | 1.80 | 2.60 | 20 | 32 |
| TCDA0707-R47M | 0.47 | 8 | 0.8 | 2.40 | 3.30 | 18 | 30 |
| TCDA0707-R60M | 0.60 | 8 | 0.8 | 2.40 | 3.30 | 18 | 28 |
| TCDA0707-R68M | 0.68 | 8 | 0.8 | 2.40 | 3.30 | 18 | 27 |
| TCDA0707-R80M | 0.8 | 8 | 0.8 | 3.30 | 4.50 | 16 | 26 |
| TCDA0707-1R0M | 1.0 | 8 | 0.8 | 3.30 | 4.50 | 16 | 25 |
| TCDA0707-1R2M | 1.2 | 8.5 | 0.8 | 3.30 | 4.50 | 16 | 24 |
| TCDA0707-1R5M | 1.5 | 8.5 | 0.8 | 4.00 | 4.80 | 15 | 20 |
| TCDA0707-1R8M | 1.8 | 9 | 0.8 | 4.00 | 4.80 | 15 | 20 |
| TCDA0707-2R2M | 2.2 | 10 | 0.8 | 5.00 | 6.00 | 10 | 15 |
Note:
All test Data is referenced to 25°C ambient.
Typical Heat Rating DC Current would cause an approximately ΔT of 40°C.
Typical Saturation DC Current would cause Lo to drop approximately 20%.
Operating Temperature Range: -25°C to +125°C.
Large Current Power Inductors (TCDA) Order Codes
| TCDA | 1312 | - | R22 | M | ||||||||||||||||||||||||
| 1 | 2 | 3 | 4 | |||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||
