扼流电感 扼流线圈 扼流圈

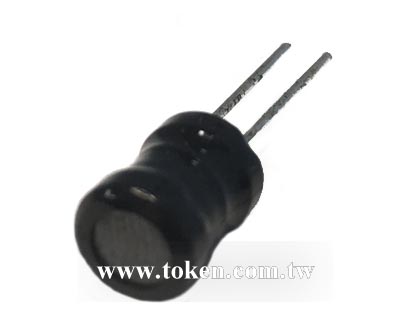

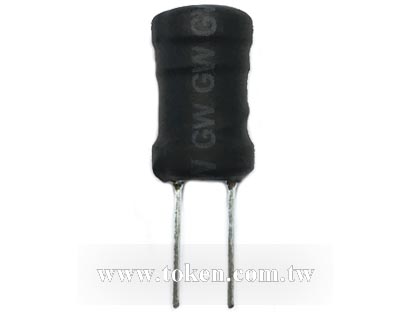

(TCRC)扼流电感 扼流线圈 扼流圈 产品简介 (TCRC)
扼流线圈又称为：扼流圈、阻流线圈、差模电感器，是用来限制交流电通过的线圈，分高频阻流圈和低频阻流圈。用于整流时称"滤波扼流圈"；用于扼制声频电流时称"声频扼流圈"；用于扼制高频电流时称"高频扼流圈"。
抗扼交变电流的电感性线圈。利用线圈电抗与频率成正比关系，可扼制高频交流电流，让低频和直流通过。根据频率高低，采用空气芯、铁氧体芯、硅钢片芯等。德键采用开磁路构造设计，有结构性佳、体积小、高 Q 值、低成本等特点，适用于笔记型电脑、喷墨印表机、影印机、显示监视器、手机、宽频数据机、游戏机、彩色电视、录放影机、摄影机、微波炉、照明设备、汽车电子产品等。
德键 TCRC 系列扼流线圈规格齐全，具有品质因素好，自共振频率高，可获得较大的感应电流，漏磁小等优点。用 PVC 或 UL 热缩套管保护，有立式和卧式结构可共选择。
德键 TCRC 扼流线圈系列，符合 RoHS 标准，无铅焊接技术及 100% 无铅，并提供更有竞争力的价格和快速交货服务。联系我们与您的特定需求。
特长 :
- 开磁路构造设计。
- 低成本及高可靠性。
用途 :
- 笔记型电脑、喷墨印表机、影印机、 显示监视器、手机、
- 宽频数据机、游戏机、彩色电视、录放影机、摄影机、
- 微波炉、照明设备、汽车电子产品。

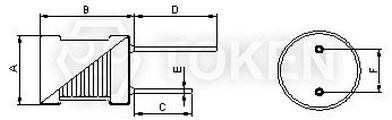

扼流电感 扼流线圈 扼流圈 结构及尺寸 (TCRC)
|
||||||
| 型号 | ΦA(max) | B(max) | C ± 1.5 | ΦE ± 0.05 | F ± 0.5 | |
| TCRC0406 | 4.0 | 6.0 | 14.0 | 0.50 | 2.0 | |
| TCRC0608 | 6.0 | 8.3 | 14.0 | 0.60 | 3.0 | |
| TCRC0810 | 8.0 | 10.0 | 14.0 | 0.60 | 5.0 | |
| TCRC0912 | 9.0 | 12.0 | 14.0 | 0.60 | 5.0 | |
| TCRC1012 | 10.0 | 12.0 | 14.0 | 0.60 | 5.0 | |
| TCRC1016 | 10.0 | 16.0 | 14.0 | 0.60 | 5.0 | |
Note: 可依客户特殊需求设计。
扼流电感 扼流线圈 扼流圈 特性规格 (TCRC0406)
| 产品料号 | 电感值 (µH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRC0406 - 1R0N | 1.00 | 1 | 0.030 | 3.00 |
| TCRC0406 - 1R5N | 1.50 | 1 | 0.035 | 2.80 |
| TCRC0406 - 1R8N | 1.80 | 1 | 0.040 | 2.70 |
| TCRC0406 - 2R2N | 2.20 | 1 | 0.045 | 2.50 |
| TCRC0406 - 2R7N | 2.70 | 1 | 0.050 | 2.50 |
| TCRC0406 - 3R3N | 3.30 | 1 | 0.055 | 2.20 |
| TCRC0406 - 3R9N | 3.90 | 1 | 0.055 | 2.20 |
| TCRC0406 - 4R7N | 4.70 | 1 | 0.065 | 2.00 |
| TCRC0406 - 5R6N | 5.60 | 1 | 0.070 | 1.80 |
| TCRC0406 - 6R8N | 6.80 | 1 | 0.080 | 1.70 |
| TCRC0406 - 8R2N | 8.20 | 1 | 0.090 | 1.50 |
| TCRC0406 - 100M | 10.00 | 1 | 0.110 | 1.40 |
| TCRC0406 - 120M | 12.00 | 1 | 0.140 | 1.20 |
| TCRC0406 - 150M | 15.00 | 1 | 0.160 | 1.00 |
| TCRC0406 - 180M | 18.00 | 1 | 0.180 | 1.00 |
| TCRC0406 - 220M | 22.00 | 1 | 0.250 | 0.90 |
| TCRC0406 - 270M | 27.00 | 1 | 0.370 | 0.80 |
| TCRC0406 - 330M | 33.00 | 1 | 0.420 | 0.70 |
| TCRC0406 - 390M | 39.00 | 1 | 0.450 | 0.70 |
| TCRC0406 - 470M | 47.00 | 1 | 0.500 | 0.60 |
| TCRC0406 - 560M | 56.00 | 1 | 0.560 | 0.60 |
| TCRC0406 - 680M | 68.00 | 1 | 0.630 | 0.55 |
| TCRC0406 - 820M | 82.00 | 1 | 0.770 | 0.50 |
| TCRC0406 - 101M | 100.00 | 1 | 0.850 | 0.40 |
| TCRC0406 - 121M | 120.00 | 1 | 1.300 | 0.40 |
| TCRC0406 - 151M | 150.00 | 1 | 1.400 | 0.30 |
| TCRC0406 - 181M | 180.00 | 1 | 2.200 | 0.30 |
| TCRC0406 - 221M | 220.00 | 1 | 2.500 | 0.28 |
| TCRC0406 - 271M | 270.00 | 1 | 2.700 | 0.25 |
| TCRC0406 - 331M | 330.00 | 1 | 3.000 | 0.22 |
| TCRC0406 - 391M | 390.00 | 1 | 3.400 | 0.21 |
| TCRC0406 - 471M | 470.00 | 1 | 3.900 | 0.20 |
| TCRC0406 - 561M | 560.00 | 1 | 5.000 | 0.16 |
| TCRC0406 - 681M | 680.00 | 1 | 7.000 | 0.15 |
| TCRC0406 - 821M | 820.00 | 1 | 7.700 | 0.14 |
| TCRC0406 - 102M | 1000.00 | 1 | 8.700 | 0.12 |
Note: 测试频率：1KHz / 0.25V.
操作温度：-40°C ~ +85°C
感量下降 = 10% typ. at IDC.
扼流电感 扼流线圈 扼流圈 特性规格 (TCRC0608)
| 产品料号 | 电感值 (µH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRC0608 - 1R0N | 1.00 | 1 | 0.015 | 3.00 |
| TCRC0608 - 1R2N | 1.20 | 1 | 0.015 | 2.80 |
| TCRC0608 - 1R5N | 1.50 | 1 | 0.015 | 2.70 |
| TCRC0608 - 2R2N | 2.20 | 1 | 0.015 | 2.60 |
| TCRC0608 - 2R7N | 2.70 | 1 | 0.020 | 2.50 |
| TCRC0608 - 3R3N | 3.30 | 1 | 0.020 | 2.50 |
| TCRC0608 - 3R9N | 3.90 | 1 | 0.025 | 2.50 |
| TCRC0608 - 4R7N | 4.70 | 1 | 0.025 | 2.30 |
| TCRC0608 - 5R6N | 5.60 | 1 | 0.030 | 2.10 |
| TCRC0608 - 6R8N | 6.80 | 1 | 0.030 | 1.80 |
| TCRC0608 - 8R2N | 8.20 | 1 | 0.035 | 1.20 |
| TCRC0608 - 100M | 10.00 | 1 | 0.045 | 1.00 |
| TCRC0608 - 120M | 12.00 | 1 | 0.050 | 1.00 |
| TCRC0608 - 150M | 15.00 | 1 | 0.055 | 0.90 |
| TCRC0608 - 180M | 18.00 | 1 | 0.090 | 0.90 |
| TCRC0608 - 220M | 22.00 | 1 | 0.095 | 0.80 |
| TCRC0608 - 270M | 27.00 | 1 | 0.110 | 0.75 |
| TCRC0608 - 330M | 33.00 | 1 | 0.125 | 0.70 |
| TCRC0608 - 390M | 39.00 | 1 | 0.140 | 0.65 |
| TCRC0608 - 470M | 47.00 | 1 | 0.160 | 0.60 |
| TCRC0608 - 560M | 56.00 | 1 | 0.180 | 0.60 |
| TCRC0608 - 680M | 68.00 | 1 | 0.200 | 0.56 |
| TCRC0608 - 820M | 82.00 | 1 | 0.270 | 0.48 |
| TCRC0608 - 101M | 100.00 | 1 | 0.310 | 0.45 |
| TCRC0608 - 121M | 120.00 | 1 | 0.370 | 0.43 |
| TCRC0608 - 151M | 150.00 | 1 | 0.470 | 0.40 |
| TCRC0608 - 181M | 180.00 | 1 | 0.540 | 0.40 |
| TCRC0608 - 221M | 220.00 | 1 | 0.730 | 0.38 |
| TCRC0608 - 271M | 270.00 | 1 | 0.830 | 0.32 |
| TCRC0608 - 331M | 330.00 | 1 | 0.950 | 0.30 |
| TCRC0608 - 391M | 390.00 | 1 | 1.220 | 0.25 |
| TCRC0608 - 471M | 470.00 | 1 | 1.630 | 0.22 |
| TCRC0608 - 561M | 560.00 | 1 | 1.800 | 0.20 |
| TCRC0608 - 681M | 680.00 | 1 | 2.100 | 0.18 |
| TCRC0608 - 821M | 820.00 | 1 | 2.900 | 0.17 |
| TCRC0608 - 102M | 1000.00 | 1 | 3.200 | 0.15 |
Note: 测试频率：1KHz / 0.25V.
操作温度：-40°C ~ +85°C
感量下降 = 10% typ. at IDC.
扼流电感 扼流线圈 扼流圈 特性规格 (TCRC0810)
| 产品料号 | 电感值 (µH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRC0810 - 1R0N | 1.00 | 1 | 0.015 | 4.50 |
| TCRC0810 - 1R5N | 1.50 | 1 | 0.020 | 4.50 |
| TCRC0810 - 2R2N | 2.20 | 1 | 0.020 | 4.20 |
| TCRC0810 - 2R7N | 2.70 | 1 | 0.020 | 4.20 |
| TCRC0810 - 3R3N | 3.30 | 1 | 0.020 | 4.00 |
| TCRC0810 - 3R9N | 3.90 | 1 | 0.020 | 4.00 |
| TCRC0810 - 4R7N | 4.70 | 1 | 0.025 | 4.00 |
| TCRC0810 - 5R6N | 5.60 | 1 | 0.025 | 4.00 |
| TCRC0810 - 6R8N | 6.80 | 1 | 0.025 | 4.00 |
| TCRC0810 - 8R2N | 8.20 | 1 | 0.035 | 3.80 |
| TCRC0810 - 100M | 10.00 | 1 | 0.040 | 3.80 |
| TCRC0810 - 120M | 12.00 | 1 | 0.040 | 3.20 |
| TCRC0810 - 150M | 15.00 | 1 | 0.045 | 2.80 |
| TCRC0810 - 180M | 18.00 | 1 | 0.060 | 2.50 |
| TCRC0810 - 220M | 22.00 | 1 | 0.070 | 2.10 |
| TCRC0810 - 270M | 27.00 | 1 | 0.085 | 2.00 |
| TCRC0810 - 330M | 33.00 | 1 | 0.090 | 1.80 |
| TCRC0810 - 390M | 39.00 | 1 | 0.100 | 1.60 |
| TCRC0810 - 470M | 47.00 | 1 | 0.110 | 1.50 |
| TCRC0810 - 560M | 56.00 | 1 | 0.150 | 1.30 |
| TCRC0810 - 680M | 68.00 | 1 | 0.190 | 1.00 |
| TCRC0810 - 820M | 82.00 | 1 | 0.210 | 0.90 |
| TCRC0810 - 101M | 100.00 | 1 | 0.240 | 0.80 |
| TCRC0810 - 121M | 120.00 | 1 | 0.260 | 0.80 |
| TCRC0810 - 151M | 150.00 | 1 | 0.310 | 0.75 |
| TCRC0810 - 181M | 180.00 | 1 | 0.380 | 0.70 |
| TCRC0810 - 221M | 220.00 | 1 | 0.430 | 0.65 |
| TCRC0810 - 271M | 270.00 | 1 | 0.490 | 0.63 |
| TCRC0810 - 331M | 330.00 | 1 | 0.660 | 0.60 |
| TCRC0810 - 391M | 390.00 | 1 | 0.790 | 0.58 |
| TCRC0810 - 471M | 470.00 | 1 | 0.910 | 0.52 |
| TCRC0810 - 561M | 560.00 | 1 | 1.130 | 0.50 |
| TCRC0810 - 681M | 680.00 | 1 | 1.300 | 0.40 |
| TCRC0810 - 821M | 820.00 | 1 | 1.530 | 0.30 |
| TCRC0810 - 102M | 1000.00 | 1 | 1.800 | 0.27 |
Note: 测试频率：1KHz / 0.25V.
操作温度：-40°C ~ +85°C
感量下降 = 10% typ. at IDC.
扼流电感 扼流线圈 扼流圈 特性规格 (TCRC0912)
| 产品料号 | 电感值 (µH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRC0912 - 1R0N | 1.00 | 1 | 0.015 | 5.00 |
| TCRC0912 - 1R5N | 1.50 | 1 | 0.015 | 5.00 |
| TCRC0912 - 1R8N | 1.80 | 1 | 0.015 | 5.00 |
| TCRC0912 - 2R2N | 2.20 | 1 | 0.015 | 5.00 |
| TCRC0912 - 3R3N | 3.30 | 1 | 0.020 | 4.80 |
| TCRC0912 - 3R9N | 3.90 | 1 | 0.020 | 4.80 |
| TCRC0912 - 4R7N | 4.70 | 1 | 0.020 | 4.50 |
| TCRC0912 - 5R6N | 5.60 | 1 | 0.025 | 4.00 |
| TCRC0912 - 6R8N | 6.80 | 1 | 0.025 | 3.90 |
| TCRC0912 - 8R2N | 8.20 | 1 | 0.025 | 3.50 |
| TCRC0912 - 100M | 10.00 | 1 | 0.030 | 3.40 |
| TCRC0912 - 120M | 12.00 | 1 | 0.030 | 3.20 |
| TCRC0912 - 150M | 15.00 | 1 | 0.040 | 3.00 |
| TCRC0912 - 180M | 18.00 | 1 | 0.045 | 2.80 |
| TCRC0912 - 220M | 22.00 | 1 | 0.050 | 2.70 |
| TCRC0912 - 270M | 27.00 | 1 | 0.055 | 2.50 |
| TCRC0912 - 330M | 33.00 | 1 | 0.055 | 2.50 |
| TCRC0912 - 390M | 39.00 | 1 | 0.060 | 2.00 |
| TCRC0912 - 470M | 47.00 | 1 | 0.070 | 1.80 |
| TCRC0912 - 560M | 56.00 | 1 | 0.080 | 1.70 |
| TCRC0912 - 680M | 68.00 | 1 | 0.090 | 1.50 |
| TCRC0912 - 820M | 82.00 | 1 | 0.110 | 1.40 |
| TCRC0912 - 101M | 100.00 | 1 | 0.160 | 1.20 |
| TCRC0912 - 121M | 120.00 | 1 | 0.170 | 1.10 |
| TCRC0912 - 151M | 150.00 | 1 | 0.200 | 1.00 |
| TCRC0912 - 181M | 180.00 | 1 | 0.220 | 0.90 |
| TCRC0912 - 221M | 220.00 | 1 | 0.260 | 0.80 |
| TCRC0912 - 271M | 270.00 | 1 | 0.390 | 0.70 |
| TCRC0912 - 331M | 330.00 | 1 | 0.450 | 0.50 |
| TCRC0912 - 391M | 390.00 | 1 | 0.490 | 0.45 |
| TCRC0912 - 471M | 470.00 | 1 | 0.620 | 0.43 |
| TCRC0912 - 561M | 560.00 | 1 | 0.640 | 0.40 |
| TCRC0912 - 681M | 680.00 | 1 | 0.790 | 0.38 |
| TCRC0912 - 821M | 820.00 | 1 | 1.340 | 0.35 |
| TCRC0912 - 102M | 1000.00 | 1 | 1.820 | 0.30 |
Note: 测试频率：1KHz / 0.25V.
操作温度：-40°C ~ +85°C
感量下降 = 10% typ. at IDC.
扼流电感 扼流线圈 扼流圈 特性规格 (TCRC1012)
| 产品料号 | 电感值 (µH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRC1012 - 1R0N | 1.00 | 1 | 0.010 | 6.00 |
| TCRC1012 - 1R5N | 1.50 | 1 | 0.010 | 6.00 |
| TCRC1012 - 1R8N | 1.80 | 1 | 0.015 | 6.00 |
| TCRC1012 - 2R7N | 2.70 | 1 | 0.015 | 5.50 |
| TCRC1012 - 3R3N | 3.30 | 1 | 0.015 | 5.50 |
| TCRC1012 - 3R9N | 3.90 | 1 | 0.020 | 5.00 |
| TCRC1012 - 4R7N | 4.70 | 1 | 0.020 | 5.00 |
| TCRC1012 - 5R6N | 5.60 | 1 | 0.025 | 4.80 |
| TCRC1012 - 6R8N | 6.80 | 1 | 0.025 | 4.80 |
| TCRC1012 - 8R2N | 8.20 | 1 | 0.025 | 4.50 |
| TCRC1012 - 100M | 10.00 | 1 | 0.025 | 4.50 |
| TCRC1012 - 120M | 12.00 | 1 | 0.025 | 4.30 |
| TCRC1012 - 150M | 15.00 | 1 | 0.035 | 4.30 |
| TCRC1012 - 180M | 18.00 | 1 | 0.040 | 4.00 |
| TCRC1012 - 220M | 22.00 | 1 | 0.045 | 3.70 |
| TCRC1012 - 270M | 27.00 | 1 | 0.045 | 3.50 |
| TCRC1012 - 330M | 33.00 | 1 | 0.055 | 3.00 |
| TCRC1012 - 390M | 39.00 | 1 | 0.060 | 2.50 |
| TCRC1012 - 470M | 47.00 | 1 | 0.080 | 2.30 |
| TCRC1012 - 560M | 56.00 | 1 | 0.085 | 2.00 |
| TCRC1012 - 680M | 68.00 | 1 | 0.095 | 2.00 |
| TCRC1012 - 820M | 82.00 | 1 | 0.110 | 1.80 |
| TCRC1012 - 101M | 100.00 | 1 | 0.140 | 1.70 |
| TCRC1012 - 121M | 120.00 | 1 | 0.160 | 1.50 |
| TCRC1012 - 151M | 150.00 | 1 | 0.180 | 1.40 |
| TCRC1012 - 181M | 180.00 | 1 | 0.250 | 1.30 |
| TCRC1012 - 221M | 220.00 | 1 | 0.280 | 1.00 |
| TCRC1012 - 271M | 270.00 | 1 | 0.420 | 0.90 |
| TCRC1012 - 331M | 330.00 | 1 | 0.540 | 0.80 |
| TCRC1012 - 391M | 390.00 | 1 | 0.600 | 0.80 |
| TCRC1012 - 471M | 470.00 | 1 | 0.660 | 0.70 |
| TCRC1012 - 561M | 560.00 | 1 | 0.740 | 0.60 |
| TCRC1012 - 681M | 680.00 | 1 | 0.840 | 0.50 |
| TCRC1012 - 821M | 820.00 | 1 | 1.080 | 0.50 |
| TCRC1012 - 102M | 1000.00 | 1 | 1.390 | 0.50 |
Note: 测试频率：1KHz / 0.25V.
操作温度：-40°C ~ +85°C
感量下降 = 10% typ. at IDC.
扼流电感 扼流线圈 扼流圈 特性规格 (TCRC1016)
| 产品料号 | 电感值 (µH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRC1016 - 1R0N | 1.00 | 1 | 0.010 | 9.00 |
| TCRC1016 - 1R5N | 1.50 | 1 | 0.015 | 9.00 |
| TCRC1016 - 1R8N | 1.80 | 1 | 0.015 | 9.00 |
| TCRC1016 - 2R7N | 2.70 | 1 | 0.015 | 9.00 |
| TCRC1016 - 3R3N | 3.30 | 1 | 0.015 | 8.50 |
| TCRC1016 - 3R9N | 3.90 | 1 | 0.015 | 8.00 |
| TCRC1016 - 4R7N | 4.70 | 1 | 0.020 | 7.50 |
| TCRC1016 - 5R6N | 5.60 | 1 | 0.025 | 7.50 |
| TCRC1016 - 6R8N | 6.80 | 1 | 0.025 | 7.50 |
| TCRC1016 - 8R2N | 8.20 | 1 | 0.025 | 7.20 |
| TCRC1016 - 100M | 10.00 | 1 | 0.030 | 7.20 |
| TCRC1016 - 120M | 12.00 | 1 | 0.030 | 7.00 |
| TCRC1016 - 150M | 15.00 | 1 | 0.035 | 6.50 |
| TCRC1016 - 180M | 18.00 | 1 | 0.035 | 6.30 |
| TCRC1016 - 220M | 22.00 | 1 | 0.045 | 5.50 |
| TCRC1016 - 270M | 27.00 | 1 | 0.050 | 4.50 |
| TCRC1016 - 330M | 33.00 | 1 | 0.070 | 4.00 |
| TCRC1016 - 390M | 39.00 | 1 | 0.070 | 3.80 |
| TCRC1016 - 470M | 47.00 | 1 | 0.070 | 3.60 |
| TCRC1016 - 560M | 56.00 | 1 | 0.080 | 3.20 |
| TCRC1016 - 680M | 68.00 | 1 | 0.090 | 3.00 |
| TCRC1016 - 820M | 82.00 | 1 | 0.095 | 2.60 |
| TCRC1016 - 101M | 100.00 | 1 | 0.120 | 2.50 |
| TCRC1016 - 121M | 120.00 | 1 | 0.140 | 2.30 |
| TCRC1016 - 151M | 150.00 | 1 | 0.170 | 2.10 |
| TCRC1016 - 181M | 180.00 | 1 | 0.190 | 2.00 |
| TCRC1016 - 221M | 220.00 | 1 | 0.250 | 1.80 |
| TCRC1016 - 271M | 270.00 | 1 | 0.340 | 1.50 |
| TCRC1016 - 331M | 330.00 | 1 | 0.450 | 1.50 |
| TCRC1016 - 391M | 390.00 | 1 | 0.510 | 1.30 |
| TCRC1016 - 471M | 470.00 | 1 | 0.560 | 1.20 |
| TCRC1016 - 561M | 560.00 | 1 | 0.640 | 1.00 |
| TCRC1016 - 681M | 680.00 | 1 | 0.710 | 1.00 |
| TCRC1016 - 821M | 820.00 | 1 | 1.010 | 0.90 |
| TCRC1016 - 102M | 1000.00 | 1 | 1.200 | 0.80 |
Note: 测试频率：1KHz / 0.25V.
操作温度：-40°C ~ +85°C
感量下降 = 10% typ. at IDC.
扼流电感 扼流线圈 扼流圈 料号标识 (TCRC)
| TCRC | U | 0406 | - | 1R0 | M | ||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 2 | 3 | 4 | 5 | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||
