阻流线圈电感器

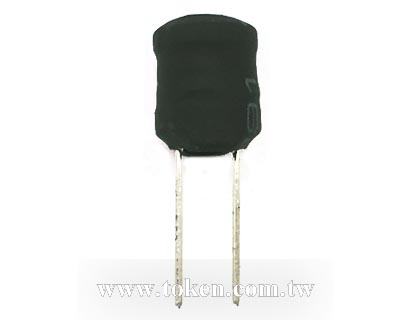

(TCRB)TCRB 系列 - 阻流线圈电感器 产品简介
德键 TCRB 系列阻流线圈规格齐全，具有品质因素好，自共振频率高，可获得较大的感应电流，漏磁小等优点。
阻流线圈又称为：扼流圈、扼流线圈、差模电感器，是用来限制交流电通过的线圈，分高频阻流圈和低频阻流圈。采用开磁路构造设计，用 PVC 或 UL 热缩套管保护，有立式和卧式结构，有结构性佳、体积小、高 Q 值、低成本等特点，适用于笔记型电脑、喷墨印表机、影印机、显示监视器、手机、宽频数据机、游戏机、彩色电视、录放影机、摄影机、微波炉、照明设备、汽车电子产品等。
德键 TCRB 阻流线圈系列，符合 RoHS 标准，无铅焊接技术及 100% 无铅，并提供更有竞争力的价格和快速交货服务。联系我们与您的特定需求。
特性 :
- 开磁路构造设计
- 低成本及高可靠性
用途 :
- 手机、宽频数据机、游戏机、彩色电视、录放影机,
- 笔记型电脑、喷墨印表机、影印机、显示监视器,
- 摄影机、微波炉、照明设备、汽车电子产品
TCRB 系列扼流线圈 结构及尺寸
|
||||||
| 型号 | ΦA(max) | B(max) | C ± 1.0 | E ± 0.05 | F ± 0.5 | |
| TCRB0605 | 6.5 | 5.5 | 4.0 | 0.50 | 4.0 | |
| TCRB0606 | 6.5 | 6.5 | 4.0 | 0.50 | 4.0 | |
| TCRB0805 | 8.3 | 5.5 | 5.0 | 0.65 | 5.0 | |
| TCRB0807 | 8.3 | 7.5 | 5.0 | 0.65 | 5.0 | |
| TCRB0809 | 8.3 | 9.5 | 5.0 | 0.65 | 5.0 | |
Note: 可依客户特殊需求设计。
扼流线圈 (TCRB0605) 特性规格
| 产品料号 | 电感值 (μH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRB0605 - 220M | 22.00 | 1 | 0.180 | 0.90 |
| TCRB0605 - 270M | 27.00 | 1 | 0.210 | 0.81 |
| TCRB0605 - 330M | 33.00 | 1 | 0.270 | 0.74 |
| TCRB0605 - 390M | 39.00 | 1 | 0.290 | 0.68 |
| TCRB0605 - 470M | 47.00 | 1 | 0.340 | 0.62 |
| TCRB0605 - 560M | 56.00 | 1 | 0.420 | 0.57 |
| TCRB0605 - 680M | 68.00 | 1 | 0.480 | 0.51 |
| TCRB0605 - 820M | 82.00 | 1 | 0.550 | 0.47 |
| TCRB0605 - 101M | 100.00 | 1 | 0.680 | 0.42 |
| TCRB0605 - 121M | 120.00 | 1 | 0.770 | 0.39 |
| TCRB0605 - 151M | 150.00 | 1 | 0.950 | 0.35 |
| TCRB0605 - 181M | 180.00 | 1 | 1.150 | 0.32 |
| TCRB0605 - 221M | 220.00 | 1 | 1.300 | 0.29 |
| TCRB0605 - 271M | 270.00 | 1 | 1.550 | 0.26 |
| TCRB0605 - 331M | 330.00 | 1 | 2.180 | 0.23 |
| TCRB0605 - 391M | 390.00 | 1 | 2.470 | 0.21 |
| TCRB0605 - 471M | 470.00 | 1 | 2.920 | 0.20 |
| TCRB0605 - 561M | 560.00 | 1 | 3.970 | 0.18 |
| TCRB0605 - 681M | 680.00 | 1 | 4.570 | 0.16 |
| TCRB0605 - 821M | 820.00 | 1 | 5.280 | 0.15 |
| TCRB0605 - 102M | 1000.00 | 1 | 7.060 | 0.13 |
Note: 测试频率：1KHz / 0.25V.
操作温度：-40°C ~ +85°C感量下降 = 10% typ. at IDC.
扼流线圈 (TCRB0606) 特性规格
| 产品料号 | 电感值 (μH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRB0606 - 220M | 22.00 | 1 | 0.110 | 1.27 |
| TCRB0606 - 270M | 27.00 | 1 | 0.140 | 1.14 |
| TCRB0606 - 330M | 33.00 | 1 | 0.170 | 1.03 |
| TCRB0606 - 390M | 39.00 | 1 | 0.190 | 0.95 |
| TCRB0606 - 470M | 47.00 | 1 | 0.230 | 0.87 |
| TCRB0606 - 560M | 56.00 | 1 | 0.260 | 0.80 |
| TCRB0606 - 680M | 68.00 | 1 | 0.280 | 0.72 |
| TCRB0606 - 820M | 82.00 | 1 | 0.390 | 0.66 |
| TCRB0606 - 101M | 100.00 | 1 | 0.430 | 0.59 |
| TCRB0606 - 121M | 120.00 | 1 | 0.540 | 0.54 |
| TCRB0606 - 151M | 150.00 | 1 | 0.640 | 0.48 |
| TCRB0606 - 181M | 180.00 | 1 | 0.740 | 0.44 |
| TCRB0606 - 221M | 220.00 | 1 | 0.960 | 0.40 |
| TCRB0606 - 271M | 270.00 | 1 | 1.120 | 0.36 |
| TCRB0606 - 331M | 330.00 | 1 | 1.480 | 0.33 |
| TCRB0606 - 391M | 390.00 | 1 | 1.660 | 0.30 |
| TCRB0606 - 471M | 470.00 | 1 | 1.910 | 0.27 |
| TCRB0606 - 561M | 560.00 | 1 | 2.310 | 0.25 |
| TCRB0606 - 681M | 680.00 | 1 | 2.670 | 0.23 |
| TCRB0606 - 821M | 820.00 | 1 | 3.100 | 0.21 |
| TCRB0606 - 102M | 1000.00 | 1 | 4.450 | 0.19 |
Note: 测试频率：1KHz / 0.25V.操作温度：-40°C ~ +85°C感量下降 = 10% typ. at IDC.
扼流线圈 (TCRB0805) 特性规格
| 产品料号 | 电感值 (μH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRB0805 - 100M | 10.00 | 1 | 0.070 | 2.50 |
| TCRB0805 - 120M | 12.00 | 1 | 0.080 | 2.40 |
| TCRB0805 - 150M | 15.00 | 1 | 0.090 | 2.10 |
| TCRB0805 - 180M | 18.00 | 1 | 0.100 | 2.00 |
| TCRB0805 - 220M | 22.00 | 1 | 0.120 | 1.70 |
| TCRB0805 - 270M | 27.00 | 1 | 0.140 | 1.60 |
| TCRB0805 - 330M | 33.00 | 1 | 0.170 | 1.40 |
| TCRB0805 - 390M | 39.00 | 1 | 0.210 | 1.30 |
| TCRB0805 - 470M | 47.00 | 1 | 0.240 | 1.20 |
| TCRB0805 - 560M | 56.00 | 1 | 0.310 | 1.10 |
| TCRB0805 - 680M | 68.00 | 1 | 0.340 | 1.00 |
| TCRB0805 - 820M | 82.00 | 1 | 0.400 | 0.93 |
| TCRB0805 - 101M | 100.00 | 1 | 0.520 | 0.81 |
| TCRB0805 - 121M | 120.00 | 1 | 0.590 | 0.76 |
| TCRB0805 - 151M | 150.00 | 1 | 0.710 | 0.67 |
| TCRB0805 - 181M | 180.00 | 1 | 0.890 | 0.62 |
| TCRB0805 - 221M | 220.00 | 1 | 1.040 | 0.54 |
| TCRB0805 - 271M | 270.00 | 1 | 1.280 | 0.49 |
| TCRB0805 - 331M | 330.00 | 1 | 1.470 | 0.44 |
| TCRB0805 - 391M | 390.00 | 1 | 1.670 | 0.41 |
| TCRB0805 - 471M | 470.00 | 1 | 1.950 | 0.38 |
| TCRB0805 - 561M | 560.00 | 1 | 2.830 | 0.35 |
| TCRB0805 - 681M | 680.00 | 1 | 3.250 | 0.32 |
| TCRB0805 - 821M | 820.00 | 1 | 3.820 | 0.31 |
| TCRB0805 - 102M | 1000.00 | 1 | 5.280 | 0.25 |
| TCRB0805 - 122M | 1200.00 | 1 | 6.030 | 0.23 |
| TCRB0805 - 152M | 1500.00 | 1 | 7.150 | 0.21 |
| TCRB0805 - 182M | 1800.00 | 1 | 8.260 | 0.20 |
| TCRB0805 - 222M | 2200.00 | 1 | 11.100 | 0.18 |
| TCRB0805 - 272M | 2700.00 | 1 | 13.100 | 0.16 |
| TCRB0805 - 332M | 3300.00 | 1 | 15.900 | 0.14 |
| TCRB0805 - 392M | 3900.00 | 1 | 18.000 | 0.13 |
| TCRB0805 - 472M | 4700.00 | 1 | 23.900 | 0.12 |
| TCRB0805 - 562M | 5600.00 | 1 | 26.800 | 0.11 |
| TCRB0805 - 682M | 6800.00 | 1 | 31.700 | 0.098 |
| TCRB0805 - 822M | 8200.00 | 1 | 46.500 | 0.088 |
| TCRB0805 - 103M | 10000.00 | 1 | 55.700 | 0.081 |
Note: 测试频率：1KHz / 0.25V.操作温度：-40°C ~ +85°C感量下降 = 10% typ. at IDC.
扼流线圈 (TCRB0807) 特性规格
| 产品料号 | 电感值 (μH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRB0807 - 100M | 10.00 | 1 | 0.050 | 2.90 |
| TCRB0807 - 120M | 12.00 | 1 | 0.060 | 2.50 |
| TCRB0807 - 150M | 15.00 | 1 | 0.070 | 2.20 |
| TCRB0807 - 180M | 18.00 | 1 | 0.080 | 1.90 |
| TCRB0807 - 220M | 22.00 | 1 | 0.090 | 1.80 |
| TCRB0807 - 270M | 27.00 | 1 | 0.110 | 1.70 |
| TCRB0807 - 330M | 33.00 | 1 | 0.130 | 1.50 |
| TCRB0807 - 390M | 39.00 | 1 | 0.140 | 1.30 |
| TCRB0807 - 470M | 47.00 | 1 | 0.150 | 1.30 |
| TCRB0807 - 560M | 56.00 | 1 | 0.180 | 1.20 |
| TCRB0807 - 680M | 68.00 | 1 | 0.200 | 1.10 |
| TCRB0807 - 820M | 82.00 | 1 | 0.240 | 1.00 |
| TCRB0807 - 101M | 100.00 | 1 | 0.280 | 0.89 |
| TCRB0807 - 121M | 120.00 | 1 | 0.360 | 0.81 |
| TCRB0807 - 151M | 150.00 | 1 | 0.420 | 0.72 |
| TCRB0807 - 181M | 180.00 | 1 | 0.570 | 0.66 |
| TCRB0807 - 221M | 220.00 | 1 | 0.630 | 0.57 |
| TCRB0807 - 271M | 270.00 | 1 | 0.880 | 0.51 |
| TCRB0807 - 331M | 330.00 | 1 | 1.050 | 0.46 |
| TCRB0807 - 391M | 390.00 | 1 | 1.170 | 0.44 |
| TCRB0807 - 471M | 470.00 | 1 | 1.340 | 0.41 |
| TCRB0807 - 561M | 560.00 | 1 | 1.720 | 0.36 |
| TCRB0807 - 681M | 680.00 | 1 | 1.960 | 0.33 |
| TCRB0807 - 821M | 820.00 | 1 | 2.560 | 0.30 |
| TCRB0807 - 102M | 1000.00 | 1 | 2.940 | 0.27 |
| TCRB0807 - 122M | 1200.00 | 1 | 4.040 | 0.24 |
| TCRB0807 - 152M | 1500.00 | 1 | 4.700 | 0.22 |
| TCRB0807 - 182M | 1800.00 | 1 | 5.050 | 0.20 |
| TCRB0807 - 222M | 2200.00 | 1 | 6.250 | 0.18 |
| TCRB0807 - 272M | 2700.00 | 1 | 8.720 | 0.16 |
| TCRB0807 - 332M | 3300.00 | 1 | 10.600 | 0.15 |
| TCRB0807 - 392M | 3900.00 | 1 | 14.200 | 0.14 |
| TCRB0807 - 472M | 4700.00 | 1 | 16.700 | 0.12 |
| TCRB0807 - 562M | 5600.00 | 1 | 18.700 | 0.11 |
| TCRB0807 - 682M | 6800.00 | 1 | 21.800 | 0.10 |
| TCRB0807 - 822M | 8200.00 | 1 | 28.700 | 0.093 |
| TCRB0807 - 103M | 10000.00 | 1 | 33.000 | 0.084 |
Note: 测试频率：1KHz / 0.25V.操作温度：-40°C ~ +85°C感量下降 = 10% typ. at IDC.
扼流线圈 (TCRB0809) 特性规格
| 产品料号 | 电感值 (μH)(min) | 测试频率 (KHz) | 直流阻抗 (Ω)(max) | 定格电流 (A)(max) |
| TCRB0809 - 100M | 10.00 | 1 | 0.040 | 2.60 |
| TCRB0809 - 120M | 12.00 | 1 | 0.040 | 2.60 |
| TCRB0809 - 150M | 15.00 | 1 | 0.050 | 2.10 |
| TCRB0809 - 180M | 18.00 | 1 | 0.050 | 2.00 |
| TCRB0809 - 220M | 22.00 | 1 | 0.060 | 1.70 |
| TCRB0809 - 270M | 27.00 | 1 | 0.060 | 1.60 |
| TCRB0809 - 330M | 33.00 | 1 | 0.070 | 1.40 |
| TCRB0809 - 390M | 39.00 | 1 | 0.080 | 1.40 |
| TCRB0809 - 470M | 47.00 | 1 | 0.100 | 1.30 |
| TCRB0809 - 560M | 56.00 | 1 | 0.110 | 1.20 |
| TCRB0809 - 680M | 68.00 | 1 | 0.140 | 1.10 |
| TCRB0809 - 820M | 82.00 | 1 | 0.160 | 1.00 |
| TCRB0809 - 101M | 100.00 | 1 | 0.190 | 0.90 |
| TCRB0809 - 121M | 120.00 | 1 | 0.220 | 0.82 |
| TCRB0809 - 151M | 150.00 | 1 | 0.270 | 0.74 |
| TCRB0809 - 181M | 180.00 | 1 | 0.310 | 0.71 |
| TCRB0809 - 221M | 220.00 | 1 | 0.380 | 0.64 |
| TCRB0809 - 271M | 270.00 | 1 | 0.530 | 0.57 |
| TCRB0809 - 331M | 330.00 | 1 | 0.610 | 0.51 |
| TCRB0809 - 391M | 390.00 | 1 | 0.690 | 0.48 |
| TCRB0809 - 471M | 470.00 | 1 | 0.890 | 0.43 |
| TCRB0809 - 561M | 560.00 | 1 | 1.010 | 0.40 |
| TCRB0809 - 681M | 680.00 | 1 | 1.180 | 0.35 |
| TCRB0809 - 821M | 820.00 | 1 | 1.570 | 0.32 |
| TCRB0809 - 102M | 1000.00 | 1 | 1.840 | 0.30 |
| TCRB0809 - 122M | 1200.00 | 1 | 2.100 | 0.27 |
| TCRB0809 - 152M | 1500.00 | 1 | 2.800 | 0.23 |
| TCRB0809 - 182M | 1800.00 | 1 | 3.210 | 0.21 |
| TCRB0809 - 222M | 2200.00 | 1 | 4.210 | 0.19 |
| TCRB0809 - 272M | 2700.00 | 1 | 4.940 | 0.17 |
| TCRB0809 - 332M | 3300.00 | 1 | 6.160 | 0.15 |
| TCRB0809 - 392M | 3900.00 | 1 | 6.840 | 0.14 |
| TCRB0809 - 472M | 4700.00 | 1 | 7.890 | 0.13 |
| TCRB0809 - 562M | 5600.00 | 1 | 11.500 | 0.12 |
| TCRB0809 - 682M | 6800.00 | 1 | 13.200 | 0.11 |
| TCRB0809 - 822M | 8200.00 | 1 | 15.200 | 0.10 |
| TCRB0809 - 103M | 10000.00 | 1 | 22.000 | 0.089 |
| TCRB0809 - 123M | 12000.00 | 1 | 25.000 | 0.073 |
| TCRB0809 - 153M | 15000.00 | 1 | 29.100 | 0.068 |
| TCRB0809 - 183M | 18000.00 | 1 | 38.900 | 0.066 |
| TCRB0809 - 223M | 22000.00 | 1 | 44.900 | 0.059 |
| TCRB0809 - 273M | 27000.00 | 1 | 55.700 | 0.052 |
| TCRB0809 - 333M | 33000.00 | 1 | 64.200 | 0.048 |
| TCRB0809 - 393M | 39000.00 | 1 | 74.200 | 0.042 |
| TCRB0809 - 473M | 47000.00 | 1 | 96.400 | 0.038 |
Note: 测试频率：1KHz / 0.25V.操作温度：-40°C ~ +85°C感量下降 = 10% typ. at IDC.
TCRB 系列扼流线圈电感器 料号标识
| TCRB | UL | 0605 | - | 220 | M | ||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 2 | 3 | 4 | 5 | |||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||
