Product Introduction (TCS)

Thin Film Surface Mount Current Sensing Resistors - TCS Series

SMD Thin Film Sensing (TCS) Series

Token's thin film surface mount current sensing resistors (TCS) make sense of current. The trend towards smaller handheld and portable electronics equipment has also increased the need for ultra small current sensing resistor. Devices from the Token Electronics' TCS series use a thin film construction that enables them to achieve precision resistance tolerances, low noise and long-term stability.

The Token TCS Series precision resistors are nichrome thin film chip resistors with a temperature coefficient of resistance of just ±50PPM/°C and tolerances of ±0.5%.

They offer excellent stability at high frequencies and are suitable for operating high voltages with more options in the smaller form sizes of 0402, 0603, 0402, 0805, 1206, 2010, and 2512.

The full range of values is from 50mΩ to 1Ω. This low ohmic devices are particularly suited to car engine management units to act as current shunt resistors.

The TCS current sense series is fully RoHS compliant and is supplied in tape and reel packaging ready for use with automated assembly processes.
Downloads Complete Specification PDF (416KB) Surface Mount Current Sensing Resistors.
Contact us with your specific needs.

Features :

Thin Film Process.
Resistance Values from 50mΩ to 1Ω.
Very Tight Tolerance from ±1% to ±0.5%.
Extremely Low TCR from ±200 PPM/°C to ±50PPM/°C.
High Purity Alumina Substrate for High Power Dissipation.
RoHS Requirments with Pb-free Terminations.

Applications :

Voltage Regulation Module (VRM),
Portable Devices (PDA, Cell phone),
Disk Driver, Switching Power Supply,
Over Current Protection in Audio Application,
DC-DC Converter, Battery Pack, Charger, Adaptor,
Automotive Engine Control, Power Management Applications,

Dimensions (Unit: mm) (TCS)

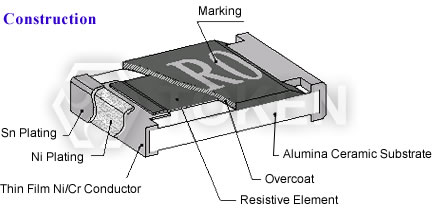

(TCS) Construction - SMD Thin Film Sensing Resistor

(TCS) Dimensions - SMD Sensing

Type

L (Unit: mm)

W (Unit: mm)

T (Unit: mm)

D1 (Unit: mm)

D2 (Unit: mm)

TCS02 (0402)

1.00±0.05

0.50±0.05

0.32±0.10

0.25±0.10

0.20±0.10

TCS03 (0603)

1.60±0.10

0.80±0.10

0.45±0.10

0.30±0.20

TCS05 (0805)

2.00±0.15

1.25±0.15

0.55±0.10

0.30±0.20

0.40±0.25

TCS06 (1206)

3.05±0.15

1.55±0.15

0.55±0.10

0.50±0.30

0.40±0.25

TCS10 (2010)

5.00±0.20

2.45±0.15

0.60±0.15

0.60±0.30

0.50±0.25

TCS12 (2512)

6.35±0.20

3.15±0.15

0.60±0.10

0.60±0.30

0.55±0.25

Standard Electrical Specifications Thin Film (TCS)

Type	Power Rating at 70°C	Operating Temp. Range	Resistance Tolerance	Resistance Range	TCR
TCS02 (0402)	1/16W	-55 ~ +155°C	±0.5% ±1.0%	500mΩ~1000mΩ	±100PPM/°C ±50PPM/°C
TCS03 (0603)	1/10W		±0.5% ±1.0%	200mΩ~300mΩ 301mΩ~1000mΩ	±100PPM/°C ±50PPM/°C
TCS05 (0805)	1/8W
TCS06 (1206)	1/4W		±1.0%	50mΩ~100mΩ	±200PPM/°C ±100PPM/°C ±50PPM/°C
			±0.5% ±1.0%	101mΩ~300mΩ 301mΩ~1000mΩ
TCS10 (2010)	3/4W		±0.5% ±1.0%	50mΩ~100mΩ 101mΩ~300mΩ 301mΩ~1000mΩ	±200PPM/°C ±100PPM/°C ±50PPM/°C
TCS12 (2512)	1W

Token has the ability to manufacture following options based on customer's requirement.

High Power Rating Electrical Specifications Thin Film (TCS)

Type	Power Rating at 70°C	Operating Temp. Range	Resistance Tolerance	Resistance Range	TCR
TCS12 (2512)	3W	-55 ~ +155°C	±1.0%	100mΩ~1000mΩ	±100PPM/°C

Power Derating Curve (TCS)

Power Derating Curve (TCS) Series

Environmental Characteristics (TCS)

Item	Specification	Test Method
Temperature Coefficient of Resistance	As Spec	MIL-STD-202F Method 304 +25/-55/+25/+125/+25°C
Short Time Overload	±1%	JIS-C-5202-5.5 RCWV*2.5 or Max Overloading Voltage 5seconds
Dielectric Withstand Voltage	by Type	MIL-STD-202F Method 301 Apply Max Overload Voltage for l minute
Insulation Resistance	>1000MΩ	MIL-STD-202F Method 302 Apply 100VDC for 1minute
Thermal Shock	±0.5%	MIL-STD-202F Method 107G -55°C~150°C, 100cycles
Load Life	±1%	MIL-STD-202F Method 108A RCWV, 70°C, 1.5 hours on ,0.5 hours off Total 1000~1048 hours
Humidity (Steady State)	±0.5%	MIL-STD-202F Method 103B 40°C, 90~95%RH, RCWV 1.5 hours ON, 0.5 hours OFF, total 1000 ~ 1048 hours
Resistance to Dry Heat	±0.5%	JIS-C-5202-7.2 96hours @ +155°C without load
Low Temperature Operation	±0.5%	JIS-C-5202-7.1 1hour, -65°C followed by 45minutes of RCWV
Bending Strength	As Spec	JIS-C-5202-6.1.4 Bending Amplitude 3mm for 10seconds
Solderability	95%min coverage	MIL-STD-202F Method 208H 245°C±5°C, 2±0.5 (sec)
Resistance to Soldering Heat	±0.5%	MIL-STD-202F Method 210E 260±5°C, 10±1 seconds

Note : Storage Temperature: 25±3°C; Humidity: <80%RH
