大電流積層式芯片磁珠電感 (TRMA)

大電流積層式芯片磁珠電感 - TRMA 射頻系列

大電流積層式芯片磁珠電感(TRMA),抑制線路傳導性的電磁干擾,最有效的元器件。

< >
  • 積層式芯片磁珠電感 - TRMA 系列

隨著信息設備和移動通信網絡的不斷發展,空間電磁波干擾對電子設備和人體健康的影響越來越嚴重,保護電磁環境,抑制各種形式電磁波干擾,已成為設計工程師當務之急。德鍵片式 EMI 抑製器 TRMA 系列,採用積層鐵氧體磁珠(濾波電感器)是抑制線路傳導性電磁干擾的有效手段。

隨著電子設備的小型化和薄型化,對 EMI 抑制也要求縮小尺寸和採用表面安裝技術。德鍵已生產的品種有表面安裝的片式磁珠、片式磁珠排、片式共模扼流圈、片式濾波器電感等。

德鍵片式磁珠有繞線型和積層型之分,繞線型磁珠的結構與穿心電感相似,但導線經過打彎後適合表面安裝;積層型磁珠 TRMA 採用高級的磁性漿料與導電漿料交替印刷製成疊層體,在鐵氧體層內部有直線狀或線圈狀的內導體。德鍵採用高磁導率材料的鐵氧體材料,在高頻時有大的損耗,可消耗和吸收干擾信號的能量,適合筆記本計算機輸出線,及液晶顯示器外圍總線,及需要多條線抑制噪聲要求應用。為提高貼裝效率,減小線路板上佔用面積,亦可採用德鍵磁珠排產品,包含有多個同樣阻抗的磁珠。

磁珠(bead)通常匝數較少,是一種能量消耗器件,用來在一些 RF 電路中吸收高頻信號,在對高頻信號表現出高阻抗,將信號轉化為熱能,磁珠的主要原料為鐵氧體。鐵氧體是一種立方晶格結構的亞鐵磁性材料。這種材料的特點是高頻損耗非常大,具有很高的導磁率,它可以使電感的線圈繞組之間在高頻高阻的情況下產生的電容最小。

鐵氧體抑制元件廣泛應用於印製電路板、電源線和資料線上。如在印製板的電源線入口端加上鐵氧體抑制元件,就可以濾除高頻干擾。鐵氧體磁環或磁珠專用於抑制信號線、電源線上的高頻干擾和尖峰干擾,它也具有吸收靜電放電脈衝干擾的能力。德鍵電子生產的大電流積層貼片磁珠採用封閉磁路結構,積層貼片磁珠可高密度安裝並避免干擾,符合RoHS規範、Lead-Free無鉛環保要求、無鉛銲接對技術。

下载 PDF 版本: 大電流積層式芯片磁珠電感 (TRMA)。

特性 :
  1. 多種尺寸可供選擇。
  2. 良好的焊錫性及耐熱性。
  3. 低直流阻抗。有效的EMI保護。
用途 :
  1. 個人電腦,硬盤。
  2. 便攜式設備,打印機。
  3. CD - ROM光碟機,調製解調器。

TRMA 系列 - 外形尺寸

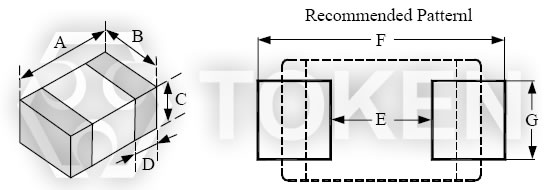

大電流積層式芯片磁珠電感 (TRMA 系列) 尺寸圖大電流積層式芯片磁珠電感 (TRMA 系列) 尺寸圖
型號 A B C D E F G
TRMA100505 (0402) 1.0 ± 0.10 0.50 ± 0.10 0.5 ± 0.10 0.25 ± 0.10 0.4 1.2~1.4 0.4
TRMA160808 (0603) 1.6 ± 0.20 0.80 ± 0.15 0.8 ± 0.15 0.30 ± 0.20 0.8 2.4~3.4 0.6
TRMA201209 (0805) 2.0 ± 0.20 1.25 ± 0.20 0.9 ± 0.20 0.50 ± 0.30 1.2 3.0~4.0 1.0
TRMA321611 (1206) 3.2 ± 0.20 1.60 ± 0.20 1.1 ± 0.20 0.50 ± 0.30 2.0 4.2~5.2 1.2
TRMA322513 (1210) 3.2 ± 0.20 2.50 ± 0.20 1.3 ± 0.20 0.50 ± 0.30 2.0 5.5~6.5 1.8
TRMA451616 (1806) 4.5 ± 0.25 1.60 ± 0.20 1.6 ± 0.20 0.50 ± 0.30 3.0 5.5~6.5 1.2
TRMA453215 (1812) 4.5 ± 0.25 3.20 ± 0.20 1.5 ± 0.20 0.50 ± 0.30 3.0 5.5~6.5 2.4

TRMA100505 標準電氣特性規格 - EIA 0402 尺寸

產品料號 阻抗值
(Ω)
誤差值
(± %)
測試頻率
(MHz)
直流阻抗
(Ω)(max)
定格電流
(mA)(max)
TRMA100505 - YTRYH100 10 25 100 0.030 1000

TRMA160808 標準電氣特性規格 - EIA 0603 尺寸

產品料號 阻抗值
(Ω)
誤差值
(± %)
測試頻率
(MHz)
直流阻抗
(Ω)(max)
定格電流
(mA)(max)
TRMA160808 - YTRYH100 10 25 100 0.020 4000
TRMA160808 - YTRYH110 11 25 100 0.020 4000
TRMA160808 - YTRYH150 15 25 100 0.030 3000
TRMA160808 - YTRYH170 17 25 100 0.030 3000
TRMA160808 - YTRYH190 19 25 100 0.030 3000
TRMA160808 - YTRYH200 20 25 100 0.030 3000
TRMA160808 - YTRYH220 22 25 100 0.030 3000
TRMA160808 - YTRYH250 25 25 100 0.030 3000
TRMA160808 - YTRYH300 30 25 100 0.030 3000
TRMA160808 - YTRYH310 31 25 100 0.030 3000
TRMA160808 - YTRYH320 32 25 100 0.035 3000
TRMA160808 - YTRYH330 33 25 100 0.035 3000
TRMA160808 - YTRYH400 40 25 100 0.035 3000
TRMA160808 - YTRYH470 47 25 100 0.040 3000
TRMA160808 - YTRYH500 50 25 100 0.040 3000
TRMA160808 - YTRYH560 56 25 100 0.040 3000
TRMA160808 - YTRYH600 60 25 100 0.040 3000
TRMA160808 - YTRYH680 68 25 100 0.050 2500
TRMA160808 - YTRYH700 70 25 100 0.050 2500
TRMA160808 - YTRYH750 75 25 100 0.050 2500
TRMA160808 - YTRYH800 80 25 100 0.050 2500
TRMA160808 - YTRYH900 90 25 100 0.050 2500
TRMA160808 - YTRYH101 100 25 100 0.050 2500
TRMA160808 - YTRYH121 120 25 100 0.080 2500
TRMA160808 - YTRYH151 150 25 100 0.085 2000
TRMA160808 - YTRYH181 180 25 100 0.090 2000
TRMA160808 - YTRYH201 200 25 100 0.095 2000
TRMA160808 - YTRYH221 220 25 100 0.100 2000
TRMA160808 - YTRYH241 240 25 100 0.120 1500
TRMA160808 - YTRYH301 300 25 100 0.120 1500
TRMA160808 - YTRYH331 330 25 100 0.120 1500
TRMA160808 - YTRYH401 400 25 100 0.120 1500
TRMA160808 - YTRYH451 450 25 100 0.150 1500
TRMA160808 - YTRYH471 470 25 100 0.150 1500
TRMA160808 - YTRYH501 500 25 100 0.150 1500
TRMA160808 - YTRYH601 600 25 100 0.200 1000
TRMA160808 - YTRYH701 700 25 100 0.250 800
TRMA160808 - YTRYH751 750 25 100 0.250 800
TRMA160808 - YTRYH801 800 25 100 0.250 800
TRMA160808 - YTRYH102 1000 25 100 0.250 800
TRMA160808 - YTRYH152 1500 25 100 0.400 500

TRMA201209 標準電氣特性規格 - EIA 0805 尺寸

產品料號 阻抗值
(Ω)
誤差值
(± %)
測試頻率
(MHz)
直流阻抗
(Ω)(max)
定格電流
(mA)(max)
TRMA201209 - YTRYH110 11 25 100 0.010 6000
TRMA201209 - YTRYH130 13 25 100 0.020 5000
TRMA201209 - YTRYH150 15 25 100 0.020 5000
TRMA201209 - YTRYH170 17 25 100 0.020 5000
TRMA201209 - YTRYH190 19 25 100 0.020 4000
TRMA201209 - YTRYH220 22 25 100 0.020 4000
TRMA201209 - YTRYH260 26 25 100 0.020 4000
TRMA201209 - YTRYH280 28 25 100 0.020 4000
TRMA201209 - YTRYH300 30 25 100 0.020 4000
TRMA201209 - YTRYH310 31 25 100 0.020 4000
TRMA201209 - YTRYH320 32 25 100 0.020 4000
TRMA201209 - YTRYH390 39 25 100 0.020 3000
TRMA201209 - YTRYH400 40 25 100 0.020 3000
TRMA201209 - YTRYH420 42 25 100 0.025 3000
TRMA201209 - YTRYH500 50 25 100 0.025 3000
TRMA201209 - YTRYH600 60 25 100 0.030 3000
TRMA201209 - YTRYH700 70 25 100 0.040 3000
TRMA201209 - YTRYH750 75 25 100 0.040 3000
TRMA201209 - YTRYH800 80 25 100 0.040 3000
TRMA201209 - YTRYH900 90 25 100 0.040 3000
TRMA201209 - YTRYH101 100 25 100 0.040 3000
TRMA201209 - YTRYH121 120 25 100 0.040 3000
TRMA201209 - YTRYH131 130 25 100 0.050 2500
TRMA201209 - YTRYH151 150 25 100 0.050 2500
TRMA201209 - YTRYH181 180 25 100 0.050 2500
TRMA201209 - YTRYH201 200 25 100 0.050 2500
TRMA201209 - YTRYH221 220 25 100 0.080 2000
TRMA201209 - YTRYH241 240 25 100 0.080 2000
TRMA201209 - YTRYH251 250 25 100 0.080 2000
TRMA201209 - YTRYH301 300 25 100 0.080 2000
TRMA201209 - YTRYH331 330 25 100 0.080 2000
TRMA201209 - YTRYH391 390 25 100 0.100 2000
TRMA201209 - YTRYH401 400 25 100 0.100 2000
TRMA201209 - YTRYH451 450 25 100 0.100 2000
TRMA201209 - YTRYH471 470 25 100 0.100 2000
TRMA201209 - YTRYH501 500 25 100 0.100 2000
TRMA201209 - YTRYH601 600 25 100 0.100 2000
TRMA201209 - YTRYH751 75025 100 0.120 1500
TRMA201209 - YTRYH102 1000 25 100 0.120 1500
TRMA201209 - YTRYH152 1500 25 100 0.300 1000

TRMA321611 標準電氣特性規格 - EIA 1206 尺寸

產品料號 阻抗值
(Ω)
誤差值
(± %)
測試頻率
(MHz)
直流阻抗
(Ω)(max)
定格電流
(mA)(max)
TRMA321611 - YTRYH070 7 25 100 0.015 6000
TRMA321611 - YTRYH080 8 25 100 0.015 6000
TRMA321611 - YTRYH110 11 25 100 0.015 6000
TRMA321611 - YTRYH190 19 25 100 0.015 6000
TRMA321611 - YTRYH260 26 25 100 0.015 6000
TRMA321611 - YTRYH300 30 25 100 0.015 4000
TRMA321611 - YTRYH310 31 25 100 0.015 4000
TRMA321611 - YTRYH320 32 25 100 0.015 4000
TRMA321611 - YTRYH350 35 25 100 0.015 4000
TRMA321611 - YTRYH400 40 25 100 0.015 4000
TRMA321611 - YTRYH420 42 25 100 0.015 4000
TRMA321611 - YTRYH480 48 25 100 0.020 4000
TRMA321611 - YTRYH500 50 25 100 0.020 4000
TRMA321611 - YTRYH520 52 25 100 0.020 4000
TRMA321611 - YTRYH600 60 25 100 0.020 4000
TRMA321611 - YTRYH680 68 25 100 0.020 4000
TRMA321611 - YTRYH700 70 25 100 0.020 4000
TRMA321611 - YTRYH750 75 25 100 0.025 3000
TRMA321611 - YTRYH800 80 25 100 0.025 3000
TRMA321611 - YTRYH900 90 25 100 0.030 3000
TRMA321611 - YTRYH101 100 25 100 0.030 2500
TRMA321611 - YTRYH121 120 25 100 0.030 2500
TRMA321611 - YTRYH151 150 25 100 0.040 2000
TRMA321611 - YTRYH201 200 25 100 0.050 2000
TRMA321611 - YTRYH221 220 25 100 0.050 2000
TRMA321611 - YTRYH121 120 25 100 0.030 2500
TRMA321611 - YTRYH151 150 25 100 0.040 2000
TRMA321611 - YTRYH201 200 25 100 0.050 2000
TRMA321611 - YTRYH221 220 25 100 0.050 2000
TRMA321611 - YTRYH301 300 25 100 0.060 2000
TRMA321611 - YTRYH331 330 25 100 0.060 2000
TRMA321611 - YTRYH391 390 25 100 0.060 2000
TRMA321611 - YTRYH401 400 25 100 0.100 2000
TRMA321611 - YTRYH501 500 25 100 0.100 2000
TRMA321611 - YTRYH601 600 25 100 0.100 2000
TRMA321611 - YTRYH102 1000 25 50 0.150 1200
TRMA321611 - YTRYH122 1200 25 50 0.180 1000
TRMA321611 - YTRYH152 1500 25 50 0.200 800

TRMA322513 標準電氣特性規格 - EIA 1210 尺寸

產品料號 阻抗值
(Ω)
誤差值
(± %)
測試頻率
(MHz)
直流阻抗
(Ω)(max)
定格電流
(mA)(max)
TRMA322513 - YTRYH190 19 25 100 0.025 4000
TRMA322513 - YTRYH320 32 25 100 0.025 4000
TRMA322513 - YTRYH600 60 25 100 0.025 4000
TRMA322513 - YTRYH900 90 25 100 0.025 3000

TRMA451616 標準電氣特性規格 - EIA 1806 尺寸

產品料號 阻抗值
(Ω)
誤差值
(± %)
測試頻率
(MHz)
直流阻抗
(Ω)(max)
定格電流
(mA)(max)
TRMA451616 - YTRYH190 19 25 100 0.020 6000
TRMA451616 - YTRYH400 40 25 100 0.020 6000
TRMA451616 - YTRYH500 50 25 100 0.020 6000
TRMA451616 - YTRYH600 60 25 100 0.020 5000
TRMA451616 - YTRYH700 70 25 100 0.025 5000
TRMA451616 - YTRYH750 75 25 100 0.025 5000
TRMA451616 - YTRYH800 80 25 100 0.025 4000
TRMA451616 - YTRYH900 90 25 100 0.100 2000
TRMA451616 - YTRYH101 100 25 100 0.100 2000
TRMA451616 - YTRYH151 150 25 100 0.100 2000
TRMA451616 - YTRYH191 190 25 100 0.100 2000
TRMA451616 - YTRYH301 300 25 100 0.100 2000
TRMA451616 - YTRYH471 470 25 100 0.100 2000
TRMA451616 - YTRYH601 600 25 100 0.100 2000
TRMA451616 - YTRYH851 850 25 100 0.100 2000
TRMA451616 - YTRYH102 1000 25 100 0.100 2000
TRMA451616 - YTRYH132 1300 25 100 0.100 2000

TRMA453215 標準電氣特性規格 - EIA 1812 尺寸

產品料號 阻抗值
(Ω)
誤差值
(± %)
測試頻率
(MHz)
直流阻抗
(Ω)(max)
定格電流
(mA)(max)
TRMA453215 - YTRYH190 19 25 100 0.030 6000
TRMA453215 - YTRYH300 30 25 100 0.030 6000
TRMA453215 - YTRYH470 47 25 100 0.030 6000
TRMA453215 - YTRYH500 50 25 100 0.030 6000
TRMA453215 - YTRYH600 60 25 100 0.030 6000
TRMA453215 - YTRYH700 70 25 100 0.030 6000
TRMA453215 - YTRYH800 80 25 100 0.030 4000
TRMA453215 - YTRYH900 90 25 100 0.030 4000
TRMA453215 - YTRYH121 120 25 100 0.030 4000
TRMA453215 - YTRYH125 125 25 100 0.030 4000
TRMA453215 - YTRYH151 150 25 100 0.030 4000
TRMA453215 - YTRYH191 190 25 100 0.030 4000

片式芯片磁珠電感 (TRMA 系列) - 環境特性

必備條件 特性 測試方法
彎曲強度 The forces applied on the right conditions must not damage the terminal electrode and the ferrite Test device shall be soldered on the substrate Substrate Dimension:100×40×1.6mm
Deflection: 2.0mm
Keeping Time: 30sec
For 0402, substrate dimension is 100×40×0.8mm
耐振動 Test device shall be soldered on the substrate
Oscillation Frequency : 10 to 55 to 10Hz for 1min Amplitude : 1.5mm
Time : 2hrs for each axis (X,YZ), total 6hrs
耐焊接熱 Appearance: No damage
More than 75% of the terminal electrode should be covered with solder.
阻抗值: within± 30% of initial value
Pre-heating: 150°C, 1min
Solder Temperature: 260 ± 5°C
Immersion Time: 10 ± 1sec
可焊性 The electrodes shall be at least 90% covered with new solder coating Pre-heating: 150°C, 1min
Solder Temperature: 245 ± 5°C
Immersion Time: 4 ± 1sec
端子拉引強度 0402 系列 : ≥0.2kg
0603 系列 : ≥0.5kg
0805 系列 : ≥1.0kg
other 系列 : ≥ 2.0kg
Test device shall be soldered on the substrate
溫度週期 Appearance: No damage 阻抗值: within ± 30% of initial value One cycle:
One cycle/step1: -55 ± 3°C for 30min
step2: 25 ± 2°C for 3.0min
step3:125 ± 3°C for 30min
step4:25 ± 2°C for 3.0min
Total: 100cycles
Measured after exposure in the room condition for 24hrs
防潮性能 Temperature: 40 ± 2°C
Relative Humidity: 90 ~ 95% time: 1000hrs
Measured after exposure in the room condition for 24hrs
耐高溫 Temperature: 125 ± 3°C
Relative Humidity : 0%
Applied Current: Rated Current time: 1000hrs
Measured after exposure in the room condition for 24hrs
低溫特性 Temperature: -55 ± 3°C
TR elative Humidity : 0% time: 1000hrs
Measured after exposure in the room condition for 24hrs

積層磁珠電感 - 料號標識

TRMA160808 Y TR Y H 100
型號
TRMA1005050402
TRMA1608080603
TRMA2012090805
TRMA3216111206
TRMA3225131210
TRMA4516161806
TRMA4532151812
阻值公差
Y ± 25%
M ± 20%
包裝
TR 編帶卷裝
設計規範
Y ui:200
Q ui:75
電流
H 高電流
N 標準電流
阻抗
100 10 Ω
110 11 Ω
451 450 Ω
152 1500 Ω
