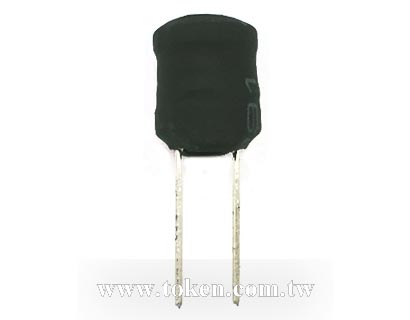

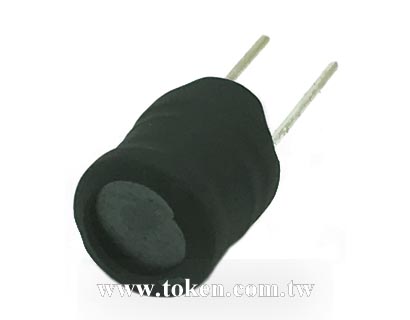

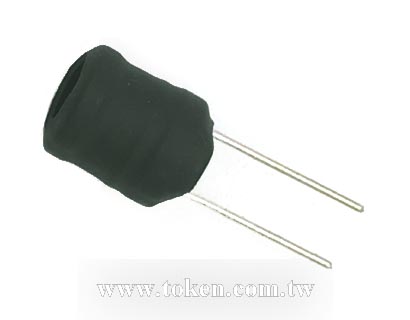

• 特長扼流線圈電感器
    － 開磁路構造設計
    － 低成本及高可靠性
  • 用途
    － 筆記型電腦、噴墨印表機、影印機、顯示監視器、
         手機、寬頻數據機、遊戲機、彩色電視、錄放影機、
         攝影機、微波爐、照明設備、汽車電子產品

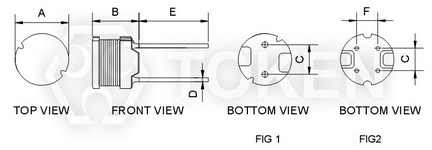

結構圖及規格尺寸
扼流線圈電感器
型號 ΦA(max) B(max) C ± 1.0 E ± 0.05 F ± 0.5
TCRB0605 6.5 5.5 4.0 0.50 4.0
TCRB0606 6.5 6.5 4.0 0.50 4.0
TCRB0805 8.3 5.5 5.0 0.65 5.0
TCRB0807 8.3 7.5 5.0 0.65 5.0
TCRB0809 8.3 9.5 5.0 0.65 5.0
  • 可依客戶特殊需求設計。

TCRB0605 系列電子特性規格
產品料號 電感值(µH) 測試頻率(KHz) 直流阻抗(Ω)(max) 定格電流(A)(max)
TCRB0605 - 220M 22.00 1 0.180 0.90
TCRB0605 - 270M 27.00 1 0.210 0.81
TCRB0605 - 330M 33.00 1 0.270 0.74
TCRB0605 - 390M 39.00 1 0.290 0.68
TCRB0605 - 470M 47.00 1 0.340 0.62
TCRB0605 - 560M 56.00 1 0.420 0.57
TCRB0605 - 680M 68.00 1 0.480 0.51
TCRB0605 - 820M 82.00 1 0.550 0.47
TCRB0605 - 101M 100.00 1 0.680 0.42
TCRB0605 - 121M 120.00 1 0.770 0.39
TCRB0605 - 151M 150.00 1 0.950 0.35
TCRB0605 - 181M 180.00 1 1.150 0.32
TCRB0605 - 221M 220.00 1 1.300 0.29
TCRB0605 - 271M 270.00 1 1.550 0.26
TCRB0605 - 331M 330.00 1 2.180 0.23
TCRB0605 - 391M 390.00 1 2.470 0.21
TCRB0605 - 471M 470.00 1 2.920 0.20
TCRB0605 - 561M 560.00 1 3.970 0.18
TCRB0605 - 681M 680.00 1 4.570 0.16
TCRB0605 - 821M 820.00 1 5.280 0.15
TCRB0605 - 102M 1000.00 1 7.060 0.13
  • Test Freq.: 1KHz / 0.25V.
    Operating Temp.: -40°C ~ +85°C
    Inductance drop = 10% typ. at IDC.

TCRB0606 系列電子特性規格
產品料號 電感值(µH) 測試頻率(KHz) 直流阻抗(Ω)(max) 定格電流(A)(max)
TCRB0606 - 220M 22.00 1 0.110 1.27
TCRB0606 - 270M 27.00 1 0.140 1.14
TCRB0606 - 330M 33.00 1 0.170 1.03
TCRB0606 - 390M 39.00 1 0.190 0.95
TCRB0606 - 470M 47.00 1 0.230 0.87
TCRB0606 - 560M 56.00 1 0.260 0.80
TCRB0606 - 680M 68.00 1 0.280 0.72
TCRB0606 - 820M 82.00 1 0.390 0.66
TCRB0606 - 101M 100.00 1 0.430 0.59
TCRB0606 - 121M 120.00 1 0.540 0.54
TCRB0606 - 151M 150.00 1 0.640 0.48
TCRB0606 - 181M 180.00 1 0.740 0.44
TCRB0606 - 221M 220.00 1 0.960 0.40
TCRB0606 - 271M 270.00 1 1.120 0.36
TCRB0606 - 331M 330.00 1 1.480 0.33
TCRB0606 - 391M 390.00 1 1.660 0.30
TCRB0606 - 471M 470.00 1 1.910 0.27
TCRB0606 - 561M 560.00 1 2.310 0.25
TCRB0606 - 681M 680.00 1 2.670 0.23
TCRB0606 - 821M 820.00 1 3.100 0.21
TCRB0606 - 102M 1000.00 1 4.450 0.19
  • Test Freq.: 1KHz / 0.25V.
    Operating Temp.: -40°C ~ +85°C
    Inductance drop = 10% typ. at IDC.

TCRB0805 系列電子特性規格
產品料號 電感值(µH) 測試頻率(KHz) 直流阻抗(Ω)(max) 定格電流(A)(max)
TCRB0805 - 100M 10.00 1 0.070 2.50
TCRB0805 - 120M 12.00 1 0.080 2.40
TCRB0805 - 150M 15.00 1 0.090 2.10
TCRB0805 - 180M 18.00 1 0.100 2.00
TCRB0805 - 220M 22.00 1 0.120 1.70
TCRB0805 - 270M 27.00 1 0.140 1.60
TCRB0805 - 330M 33.00 1 0.170 1.40
TCRB0805 - 390M 39.00 1 0.210 1.30
TCRB0805 - 470M 47.00 1 0.240 1.20
TCRB0805 - 560M 56.00 1 0.310 1.10
TCRB0805 - 680M 68.00 1 0.340 1.00
TCRB0805 - 820M 82.00 1 0.400 0.93
TCRB0805 - 101M 100.00 1 0.520 0.81
TCRB0805 - 121M 120.00 1 0.590 0.76
TCRB0805 - 151M 150.00 1 0.710 0.67
TCRB0805 - 181M 180.00 1 0.890 0.62
TCRB0805 - 221M 220.00 1 1.040 0.54
TCRB0805 - 271M 270.00 1 1.280 0.49
TCRB0805 - 331M 330.00 1 1.470 0.44
TCRB0805 - 391M 390.00 1 1.670 0.41
TCRB0805 - 471M 470.00 1 1.950 0.38
TCRB0805 - 561M 560.00 1 2.830 0.35
TCRB0805 - 681M 680.00 1 3.250 0.32
TCRB0805 - 821M 820.00 1 3.820 0.31
TCRB0805 - 102M 1000.00 1 5.280 0.25
TCRB0805 - 122M 1200.00 1 6.030 0.23
TCRB0805 - 152M 1500.00 1 7.150 0.21
TCRB0805 - 182M 1800.00 1 8.260 0.20
TCRB0805 - 222M 2200.00 1 11.100 0.18
TCRB0805 - 272M 2700.00 1 13.100 0.16
TCRB0805 - 332M 3300.00 1 15.900 0.14
TCRB0805 - 392M 3900.00 1 18.000 0.13
TCRB0805 - 472M 4700.00 1 23.900 0.12
TCRB0805 - 562M 5600.00 1 26.800 0.11
TCRB0805 - 682M 6800.00 1 31.700 0.098
TCRB0805 - 822M 8200.00 1 46.500 0.088
TCRB0805 - 103M 10000.00 1 55.700 0.081
  • Test Freq.: 1KHz / 0.25V.
    Operating Temp.: -40°C ~ +85°C
    Inductance drop = 10% typ. at IDC.

TCRB0807 系列電子特性規格
產品料號 電感值(µH) 測試頻率(KHz) 直流阻抗(Ω)(max) 定格電流(A)(max)
TCRB0807 - 100M 10.00 1 0.050 2.90
TCRB0807 - 120M 12.00 1 0.060 2.50
TCRB0807 - 150M 15.00 1 0.070 2.20
TCRB0807 - 180M 18.00 1 0.080 1.90
TCRB0807 - 220M 22.00 1 0.090 1.80
TCRB0807 - 270M 27.00 1 0.110 1.70
TCRB0807 - 330M 33.00 1 0.130 1.50
TCRB0807 - 390M 39.00 1 0.140 1.30
TCRB0807 - 470M 47.00 1 0.150 1.30
TCRB0807 - 560M 56.00 1 0.180 1.20
TCRB0807 - 680M 68.00 1 0.200 1.10
TCRB0807 - 820M 82.00 1 0.240 1.00
TCRB0807 - 101M 100.00 1 0.280 0.89
TCRB0807 - 121M 120.00 1 0.360 0.81
TCRB0807 - 151M 150.00 1 0.420 0.72
TCRB0807 - 181M 180.00 1 0.570 0.66
TCRB0807 - 221M 220.00 1 0.630 0.57
TCRB0807 - 271M 270.00 1 0.880 0.51
TCRB0807 - 331M 330.00 1 1.050 0.46
TCRB0807 - 391M 390.00 1 1.170 0.44
TCRB0807 - 471M 470.00 1 1.340 0.41
TCRB0807 - 561M 560.00 1 1.720 0.36
TCRB0807 - 681M 680.00 1 1.960 0.33
TCRB0807 - 821M 820.00 1 2.560 0.30
TCRB0807 - 102M 1000.00 1 2.940 0.27
TCRB0807 - 122M 1200.00 1 4.040 0.24
TCRB0807 - 152M 1500.00 1 4.700 0.22
TCRB0807 - 182M 1800.00 1 5.050 0.20
TCRB0807 - 222M 2200.00 1 6.250 0.18
TCRB0807 - 272M 2700.00 1 8.720 0.16
TCRB0807 - 332M 3300.00 1 10.600 0.15
TCRB0807 - 392M 3900.00 1 14.200 0.14
TCRB0807 - 472M 4700.00 1 16.700 0.12
TCRB0807 - 562M 5600.00 1 18.700 0.11
TCRB0807 - 682M 6800.00 1 21.800 0.10
TCRB0807 - 822M 8200.00 1 28.700 0.093
TCRB0807 - 103M 10000.00 1 33.000 0.084
  • Test Freq.: 1KHz / 0.25V.
    Operating Temp.: -40°C ~ +85°C
    Inductance drop = 10% typ. at IDC.

TCRB0809 系列電子特性規格
產品料號 電感值(µH) 測試頻率(KHz) 直流阻抗(Ω)(max) 定格電流(A)(max)
TCRB0809 - 100M 10.00 1 0.040 2.60
TCRB0809 - 120M 12.00 1 0.040 2.60
TCRB0809 - 150M 15.00 1 0.050 2.10
TCRB0809 - 180M 18.00 1 0.050 2.00
TCRB0809 - 220M 22.00 1 0.060 1.70
TCRB0809 - 270M 27.00 1 0.060 1.60
TCRB0809 - 330M 33.00 1 0.070 1.40
TCRB0809 - 390M 39.00 1 0.080 1.40
TCRB0809 - 470M 47.00 1 0.100 1.30
TCRB0809 - 560M 56.00 1 0.110 1.20
TCRB0809 - 680M 68.00 1 0.140 1.10
TCRB0809 - 820M 82.00 1 0.160 1.00
TCRB0809 - 101M 100.00 1 0.190 0.90
TCRB0809 - 121M 120.00 1 0.220 0.82
TCRB0809 - 151M 150.00 1 0.270 0.74
TCRB0809 - 181M 180.00 1 0.310 0.71
TCRB0809 - 221M 220.00 1 0.380 0.64
TCRB0809 - 271M 270.00 1 0.530 0.57
TCRB0809 - 331M 330.00 1 0.610 0.51
TCRB0809 - 391M 390.00 1 0.690 0.48
TCRB0809 - 471M 470.00 1 0.890 0.43
TCRB0809 - 561M 560.00 1 1.010 0.40
TCRB0809 - 681M 680.00 1 1.180 0.35
TCRB0809 - 821M 820.00 1 1.570 0.32
TCRB0809 - 102M 1000.00 1 1.840 0.30
TCRB0809 - 122M 1200.00 1 2.100 0.27
TCRB0809 - 152M 1500.00 1 2.800 0.23
TCRB0809 - 182M 1800.00 1 3.210 0.21
TCRB0809 - 222M 2200.00 1 4.210 0.19
TCRB0809 - 272M 2700.00 1 4.940 0.17
TCRB0809 - 332M 3300.00 1 6.160 0.15
TCRB0809 - 392M 3900.00 1 6.840 0.14
TCRB0809 - 472M 4700.00 1 7.890 0.13
TCRB0809 - 562M 5600.00 1 11.500 0.12
TCRB0809 - 682M 6800.00 1 13.200 0.11
TCRB0809 - 822M 8200.00 1 15.200 0.10
TCRB0809 - 103M 10000.00 1 22.000 0.089
TCRB0809 - 123M 12000.00 1 25.000 0.073
TCRB0809 - 153M 15000.00 1 29.100 0.068
TCRB0809 - 183M 18000.00 1 38.900 0.066
TCRB0809 - 223M 22000.00 1 44.900 0.059
TCRB0809 - 273M 27000.00 1 55.700 0.052
TCRB0809 - 333M 33000.00 1 64.200 0.048
TCRB0809 - 393M 39000.00 1 74.200 0.042
TCRB0809 - 473M 47000.00 1 96.400 0.038
  • Test Freq.: 1KHz / 0.25V.
    Operating Temp.: -40°C ~ +85°C
    Inductance drop = 10% typ. at IDC.

如何訂購
TCRB (UL) 0605 - 1R0 M

型號
抗流線圈:
(TCRB)
套管
UL
尺寸
0605
0606
0805
0807
0809

電感值
1R0(1.00µH)
100(10.00µH)
101(100.00µH)
102(1000.00µH)
誤差值
J (5%)
K (10%)
L (15%)
M (20%)
N (30%)
Y (min)

Inductor Radial Choke 德鍵電子工業股份公司
臺灣電話﹕+886-2-29810109﹔傳真﹕+886-2-29887487
大陸電話﹕+86-755-26055363﹔傳真﹕+86-755-26055365
